AD7992BRMZ-0REEL - Analog Devices

Description: Analog to Digital Converters - ADC 2-Channel, 12-Bit ADC with 12C ITF I.C.

Download AD7992BRMZ-0REEL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

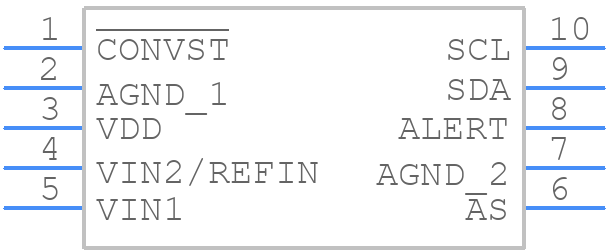

AD7992BRMZ-0REEL - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD7992BRMZ-0REEL - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RM-10(MSOP)_BSC
click to zoom
3D Models
AD7992BRMZ-0REEL - Analog Devices - 3D model - Small Outline Packages - RM-10(MSOP)_BSC
click to zoom

AD7992BRMZ-0REEL Details

  • Manufacturer Part Number:

    AD7992BRMZ-0REEL

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    LEAD FREE, MO-187-BA, MSOP-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    RM-10

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    5.5 V

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    S-PDSO-G10

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Linearity Error-Max (EL):

    0.0244%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    2

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP10,.19,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    0.188 MHz

  • Sample and Hold / Track and Hold:

    TRACK

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

AD7992BRMZ-0REEL Frequently Asked Questions (FAQs)

  • A good layout and routing practice is to keep the analog and digital grounds separate, use a solid ground plane, and keep the analog signals away from the digital signals. Also, use a low-ESR capacitor for the AVDD and DVDD pins, and keep the traces short and direct.
  • The AD7992BRMZ-0REEL has an internal calibration circuit that can be used to calibrate the device. The calibration process involves writing a specific code to the CAL register, and then reading back the calibration data. The device can also be calibrated using an external voltage reference.
  • The maximum sampling rate of the AD7992BRMZ-0REEL is 250 kSPS (kilo-samples per second). However, the actual sampling rate may be limited by the system's clock frequency, the conversion time, and the settling time of the analog input signal.
  • If the AD7992BRMZ-0REEL is not converting correctly or is producing incorrect results, check the power supply voltages, analog input signal, and clock frequency. Ensure that the device is properly calibrated, and the analog input signal is within the specified range. Also, check for any noise or interference in the system that may be affecting the conversion results.
  • Yes, the AD7992BRMZ-0REEL can be used in a multi-channel application. The device has a built-in multiplexer that allows it to convert multiple analog input channels. The channels can be selected using the CH[3:0] pins, and the conversion results can be read back using the SDATA pin.
