AD7992BRMZ-1REEL - Analog Devices

Description: Analog to Digital Converters - ADC 2-Channel, 12-Bit ADC with 12C ITF I.C.

Download AD7992BRMZ-1REEL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

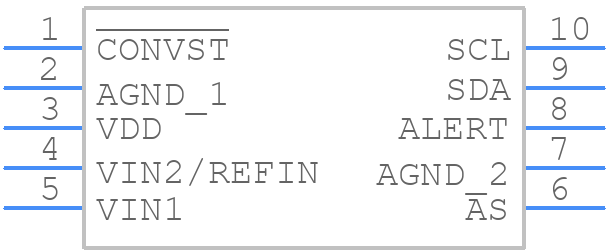

Symbol
AD7992BRMZ-1REEL - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD7992BRMZ-1REEL - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RM-10
click to zoom
3D Models
AD7992BRMZ-1REEL - Analog Devices - 3D model - Small Outline Packages - RM-10
click to zoom

AD7992BRMZ-1REEL Details

  • Manufacturer Part Number:

    AD7992BRMZ-1REEL

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    LEAD FREE, MO-187-BA, MSOP-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    RM-10

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    5.5 V

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    S-PDSO-G10

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Linearity Error-Max (EL):

    0.0244%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    2

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP10,.19,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    0.188 MHz

  • Sample and Hold / Track and Hold:

    TRACK

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

AD7992BRMZ-1REEL Frequently Asked Questions (FAQs)

  • A good layout and routing practice is to keep the analog and digital grounds separate, use a solid ground plane, and keep the analog signal traces away from the digital signal traces. Additionally, use a low-ESR capacitor for the AVDD and DVDD pins, and keep the clock signal traces short and away from the analog signal traces.
  • The AD7992BRMZ-1REEL has an internal calibration circuit that can be used to calibrate the device. The calibration process involves writing a specific code to the CAL register, and then reading back the calibration data. The calibration data can then be used to correct for any offset or gain errors in the conversion results.
  • The maximum sampling rate of the AD7992BRMZ-1REEL is 250 kSPS (kilo-samples per second). However, the actual sampling rate may be limited by the system's clock frequency, the conversion mode, and the interface mode.
  • Yes, the AD7992BRMZ-1REEL can be used in a multi-channel application. The device has a built-in multiplexer that allows it to connect to multiple analog input channels. The channels can be selected using the CH[3:0] pins, and the conversion results can be read out through the SPI interface.
  • The power consumption of the AD7992BRMZ-1REEL depends on the operating mode, clock frequency, and interface mode. The typical power consumption is around 1.5 mA at 1.8 V supply voltage. To minimize power consumption, the device can be put into shutdown mode when not in use, and the clock frequency can be reduced to the minimum required for the application.
