AD7993BRUZ-0 - Analog Devices

Description: AD7993BRUZ-0, 10-Bit Analogue to Digital Converter, Serial, 16-Pin TSSOP

Download AD7993BRUZ-0 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

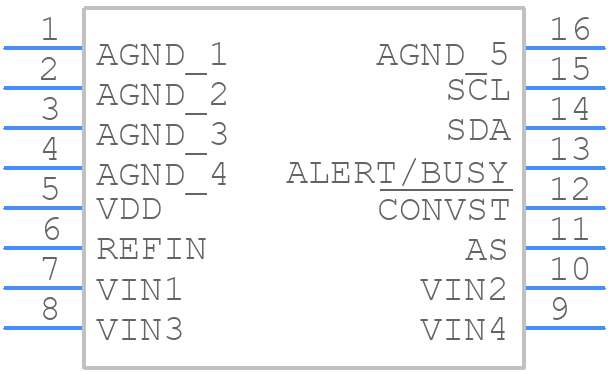

Symbol
AD7993BRUZ-0 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD7993BRUZ-0 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RU-16 (TSSOP)
click to zoom
3D Models
AD7993BRUZ-0 - Analog Devices - 3D model - Small Outline Packages - RU-16 (TSSOP)
click to zoom

AD7993BRUZ-0 Details

  • Manufacturer Part Number:

    AD7993BRUZ-0

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    LEAD FREE, MO-153-AB, TSSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    RU-16

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    5.5 V

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Linearity Error-Max (EL):

    0.0488%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    4

  • Number of Bits:

    10

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    0.188 MHz

  • Sample and Hold / Track and Hold:

    TRACK

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

AD7993BRUZ-0 Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VDD before applying VREF. This ensures that the internal reference is stable before the ADC starts converting.
  • To minimize noise and ensure accurate conversions, keep the analog and digital grounds separate, use a solid ground plane, and keep the analog input traces short and away from digital traces. Also, use a low-ESR capacitor for the VREF pin.
  • The maximum sampling rate of the AD7993BRUZ-0 is 300 kSPS. As the sampling rate increases, the power consumption also increases. To minimize power consumption, reduce the sampling rate or use the power-down mode between conversions.
  • If the output is stuck at a certain value, check the input voltage range, ensure that the VREF pin is properly connected, and verify that the clock signal is within the specified frequency range. Also, check for any noise or interference on the analog input lines.
  • Yes, the AD7993BRUZ-0 can be used with an external reference voltage. The external reference voltage should be between 2.5 V and 5.5 V, and it should be stable and low-noise. Also, ensure that the external reference voltage is connected to the VREF pin through a low-pass filter to minimize noise.
