Please enter a minimum 3 letters or numbers
Technical Content
Part Image

AD7998BRUZ-1 - Analog Devices

Description: Analog to Digital Converters - ADC 8Channel,12Bit ADC - I2C Interface IC

Download AD7998BRUZ-1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

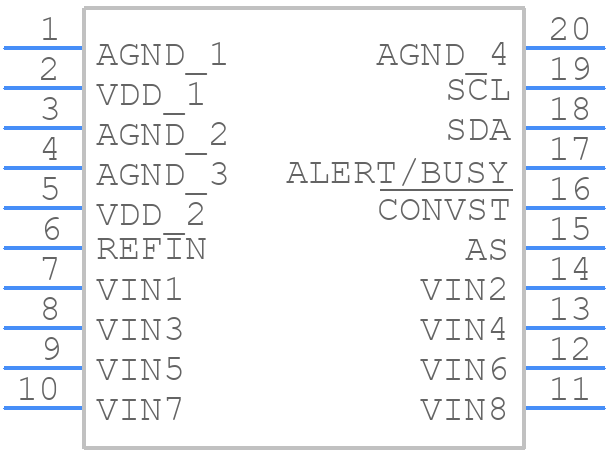

AD7998BRUZ-1 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD7998BRUZ-1 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RU-20 (TSSOP)
click to zoom
3D Models
AD7998BRUZ-1 - Analog Devices - 3D model - Small Outline Packages - RU-20 (TSSOP)
click to zoom

AD7998BRUZ-1 Details

  • Manufacturer Part Number:

    AD7998BRUZ-1

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    LEAD FREE, MO-153-AC, TSSOP-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    RU-20

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    5.5 V

  • Conversion Time-Max:

    2 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e3

  • Length:

    6.5 mm

  • Linearity Error-Max (EL):

    0.0244%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    8

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY

  • Output Format:

    SERIAL, PARALLEL, WORD

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP20,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    0.188 MHz

  • Sample and Hold / Track and Hold:

    TRACK

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

AD7998BRUZ-1 Frequently Asked Questions (FAQs)

  • A good layout and routing practice is to keep the analog and digital grounds separate, use a solid ground plane, and keep the analog signals away from the digital signals. Also, use a low-ESR capacitor for the AVDD and DVDD pins, and keep the analog input traces as short as possible.
  • The AD7998BRUZ-1 has an internal calibration circuit that can be enabled by setting the CAL bit in the control register. The device can also be calibrated externally by applying a known voltage to the input pins and adjusting the offset and gain registers accordingly.
  • The maximum sampling rate of the AD7998BRUZ-1 is 300 kSPS. The power consumption increases with the sampling rate, so it's recommended to use the lowest sampling rate necessary for the application to minimize power consumption.
  • The AD7998BRUZ-1 has internal overvoltage protection on the analog input pins, but it's still recommended to use external protection circuitry such as voltage-limiting resistors or clamping diodes to prevent damage from overvoltage conditions.
  • Yes, the AD7998BRUZ-1 can be used in a multi-channel application by using the channel select pins (CH0-CH3) to select the desired channel. The device can be configured to scan through multiple channels using the auto-increment mode or by using an external microcontroller to control the channel select pins.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD7998BRUZ-1 Overview

Use the download button to access the AD7998BRUZ-1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD799, or try a keyword search, such as Analog to Digital Converters

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.

Parts related to AD7998BRUZ-1

Showing 0 results

Part Image

← Prev Next →
About Us Contact Us Terms of Service Do not sell or share my personal information Privacy Policy Digital Services Act Library Loader Twitter LinkedIn

All content Copyright © 2020, Supplyframe.com. All rights reserved. Back to top ↑

AD7998BRUZ-1 Alternates

Showing results

Image Part Number Model
Part Image AD7998BRU-1 Analog Devices Inc

ADC, Successive Approximation, 12-Bit, 1 Func, 8 Channel, Serial, Parallel, Word Access, CMOS, PDSO20
