AD8280WASTZ - Analog Devices

Description: Lithium Ion Battery Safety Monitor

Download AD8280WASTZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

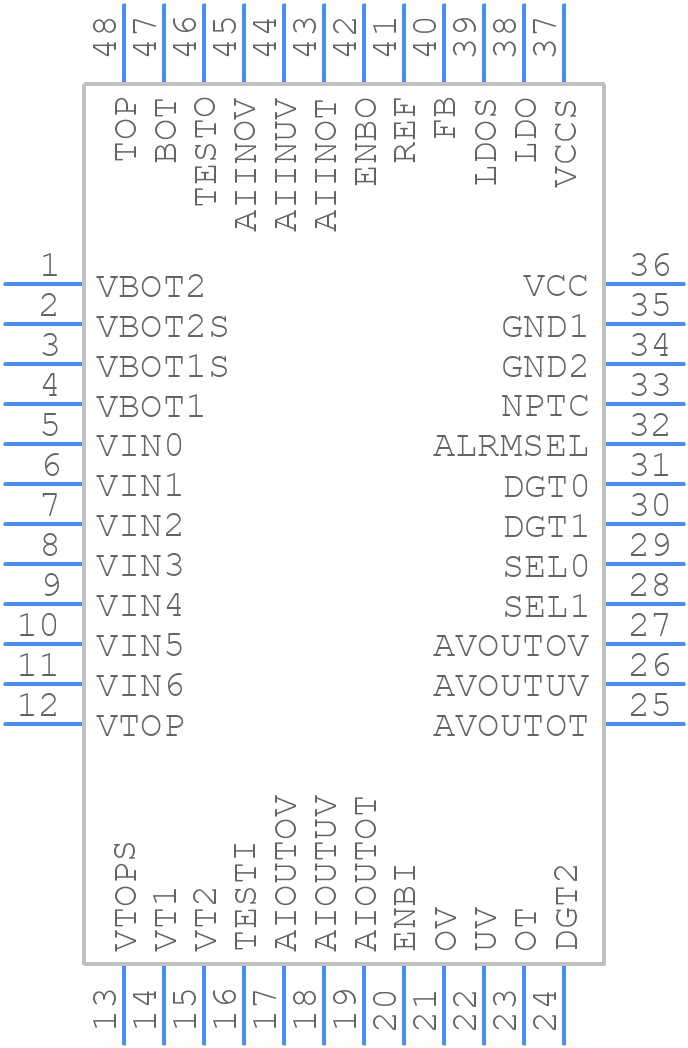

AD8280WASTZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD8280WASTZ - Analog Devices PCB footprint - Quad Flat Packages - Quad Flat Packages - ST-48 (LQFP)
click to zoom
3D Models
AD8280WASTZ - Analog Devices - 3D model - Quad Flat Packages - ST-48 (LQFP)
click to zoom

AD8280WASTZ Details

  • Manufacturer Part Number:

    AD8280WASTZ

  • Source Url Status Check Date:

    2013-05-01 14:56:25.231

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Package Description:

    LQFP-48

  • Pin Count:

    48

  • Manufacturer Package Code:

    ST-48

  • Country Of Origin:

    Mainland China, Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    3

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    BATTERY MONITOR

  • JESD-30 Code:

    S-PQFP-G48

  • JESD-609 Code:

    e3

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    3

  • Number of Channels:

    7

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LFQFP

  • Package Equivalence Code:

    QFP48,.35SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, LOW PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.6 mm

  • Supply Current-Max (Isup):

    2 mA

  • Supply Voltage-Max (Vsup):

    30 V

  • Supply Voltage-Min (Vsup):

    6 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7 mm

AD8280WASTZ Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the AD8280WASTZ involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources to minimize noise. A 4-layer PCB with a dedicated analog ground plane is recommended.
  • To optimize the performance of the AD8280WASTZ in a noisy environment, use shielding, filtering, and decoupling to minimize electromagnetic interference (EMI) and radio-frequency interference (RFI). Use a low-pass filter at the input to remove high-frequency noise, and consider using a ferrite bead or a common-mode choke to filter out noise.
  • The AD8280WASTZ can support clock frequencies up to 50 MHz, but the maximum clock frequency may vary depending on the specific application and system requirements. It's recommended to consult the datasheet and application notes for more information.
  • The AD8280WASTZ can be configured for differential or pseudo-differential input modes by setting the appropriate pins and registers. For differential mode, connect the positive and negative inputs to the corresponding pins, and set the input mode register accordingly. For pseudo-differential mode, connect the input signal to the positive input pin and the negative input pin to a reference voltage, and set the input mode register accordingly.
  • The power consumption of the AD8280WASTZ varies depending on the operating mode and clock frequency. To reduce power consumption, consider using the low-power mode, reducing the clock frequency, or using a lower supply voltage. Additionally, consider using power-saving features such as shutdown or standby modes when the device is not in use.
