AD8314ARMZ-REEL7 - Analog Devices

Description: RF Detector uSOIC 0.1 TO 2.5GHz RF Detector/Cntrllr

Download AD8314ARMZ-REEL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

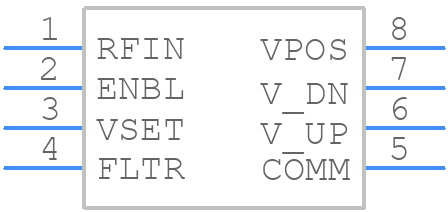

Symbol
AD8314ARMZ-REEL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD8314ARMZ-REEL7 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - MSOP-8-ren2
click to zoom
3D Models
AD8314ARMZ-REEL7 - Analog Devices - 3D model - Small Outline Packages - MSOP-8-ren2
click to zoom

AD8314ARMZ-REEL7 Details

  • Manufacturer Part Number:

    AD8314ARMZ-REEL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    LEAD FREE, MO-187AA, MSOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    RM-8

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    TELECOM CIRCUIT

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

AD8314ARMZ-REEL7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the AD8314 involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated ground plane is recommended.
  • The gain resistor (Rg) value depends on the desired gain and bandwidth. A smaller Rg value increases the gain but reduces the bandwidth. A larger Rg value decreases the gain but increases the bandwidth. Use the gain equation in the datasheet to calculate the optimal Rg value for your application.
  • The maximum input voltage that the AD8314 can handle is ±2.5V. Exceeding this voltage can cause damage to the device. If your input signal exceeds this voltage, consider using an external attenuator or clamp circuit to protect the device.
  • To reduce noise and oscillations, ensure that the input and output traces are well-separated, use a solid ground plane, and add decoupling capacitors close to the device. Additionally, consider adding a ferrite bead or a series resistor to the input to filter out high-frequency noise.
  • Yes, the AD8314 can be used in a single-supply application. However, the output voltage will be limited to the supply voltage minus the headroom voltage (typically 1.5V). Ensure that the input signal is within the common-mode range of the device.
