AD8324ACPZ - Analog Devices

Description: Analog Devices AD8324ACPZ, Differential Line Driver 3.3 V 100MHz 20-Pin LFCSP

Download AD8324ACPZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

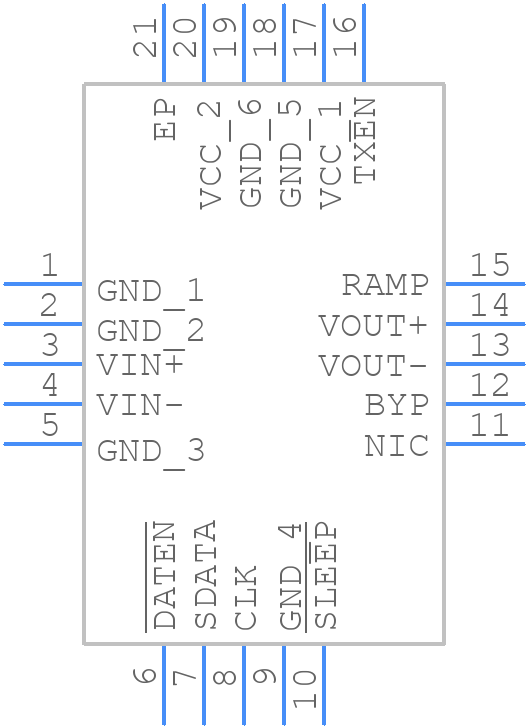

AD8324ACPZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD8324ACPZ - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - CP-20-6 (LFCSP)
click to zoom
3D Models
AD8324ACPZ - Analog Devices - 3D model - Quad Flat No-Lead - CP-20-6 (LFCSP)
click to zoom

AD8324ACPZ Details

  • Manufacturer Part Number:

    AD8324ACPZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Package Description:

    LEAD FREE, 4 X 4 MM, MO-220VGGD-1, CSP-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    CP-20-6

  • Country Of Origin:

    South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Differential Output:

    YES

  • Driver Number of Bits:

    1

  • Input Characteristics:

    STANDARD

  • Interface IC Type:

    LINE DRIVER

  • Interface Standard:

    GENERAL PURPOSE

  • JESD-30 Code:

    S-XQCC-N20

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max:

    3.47 V

  • Supply Voltage-Min:

    3.13 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    4 mm

AD8324ACPZ Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the AD8324ACPZ can be found in the AD8324 Evaluation Board documentation, which provides a detailed layout guide and Gerber files for reference. Additionally, Analog Devices provides a PCB layout checklist in the datasheet to ensure proper layout and minimize noise.
  • To optimize the performance of the AD8324ACPZ, it's essential to follow the recommended operating conditions, such as supply voltage, temperature range, and input/output impedance. Additionally, Analog Devices provides application notes and design tools, such as the ADIsimPLL tool, to help engineers optimize their designs.
  • The maximum power dissipation of the AD8324ACPZ is dependent on the operating conditions, such as supply voltage and temperature. According to the datasheet, the maximum power dissipation is 1.4W at a supply voltage of 5V and a junction temperature of 85°C. However, it's essential to perform thermal analysis and design a proper heat sink to ensure reliable operation.
  • While the AD8324ACPZ is optimized for 50Ω systems, it can be used in non-50Ω systems with some adjustments. However, this may require additional impedance matching networks and may affect the overall performance of the device. It's recommended to consult with Analog Devices' application engineers or perform simulations to ensure optimal performance in non-50Ω systems.
  • The AD8324ACPZ is not specifically designed or tested for radiation hardness. However, Analog Devices provides radiation-hardened versions of some of their products, such as the RAD-PAK and ceramic packages. For radiation-hardened applications, it's recommended to consult with Analog Devices' sales team or application engineers to determine the best solution.
