The AD876JR is a high-precision, high-speed ADC, and its performance can be affected by the PCB layout and component placement. It is recommended to follow a star-grounding scheme, keep the analog and digital grounds separate, and use a solid ground plane to minimize noise. Additionally, place the ADC close to the analog signal sources and keep the signal traces short and shielded.
To optimize the AD876JR's performance, it is essential to understand the specific requirements of your application. Consider factors such as the input signal frequency, amplitude, and noise level, as well as the desired SNR, THD, and SFDR. Adjust the ADC's gain, offset, and sampling rate accordingly, and consider using external filters or amplifiers if necessary.
When using the AD876JR in a multi-channel or multi-board system, consider the increased complexity of the system, including clock synchronization, data synchronization, and noise coupling between channels. Ensure that each channel has its own dedicated analog and digital grounds, and consider using a common clock source to synchronize the ADCs.
The AD876JR's digital output data can be handled using a FIFO or DMA for efficient data transfer. Consider the data transfer rate, FIFO/DMA buffer size, and the microcontroller's or processor's capabilities when selecting the data transfer method. Ensure that the data transfer rate matches the ADC's sampling rate, and consider using interrupts or DMA requests to minimize CPU overhead.
The AD876JR is a high-speed, high-power ADC, and thermal management is crucial to ensure reliable operation over temperature. Ensure good airflow, use a heat sink if necessary, and consider the PCB's thermal conductivity. Operate the ADC within its specified temperature range, and consider using thermal monitoring and shutdown mechanisms to prevent overheating.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
AD876JR Overview

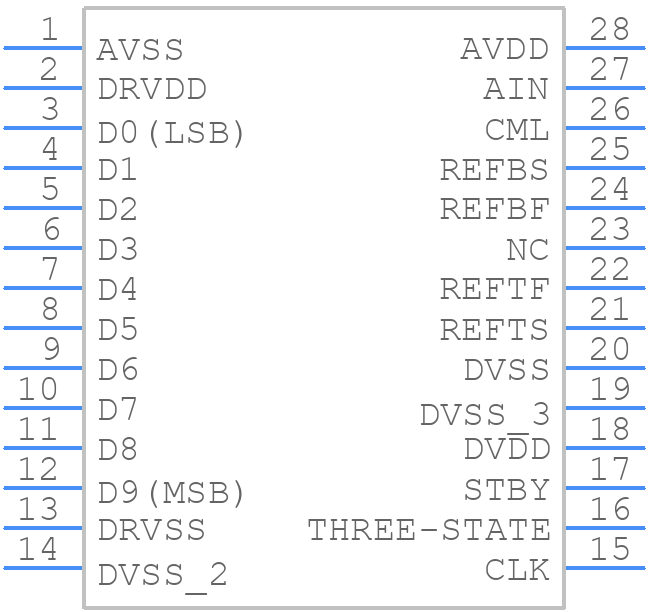

Use the download button to access the AD876JR schematic symbol, PCB footprint, and 3D model.
