AD9054ABSTZ-135 - Analog Devices

Description: Analog Devices AD9054ABSTZ-135, 8 bit Parallel ADC, Differential Input, 44-Pin LQFP

Download AD9054ABSTZ-135 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

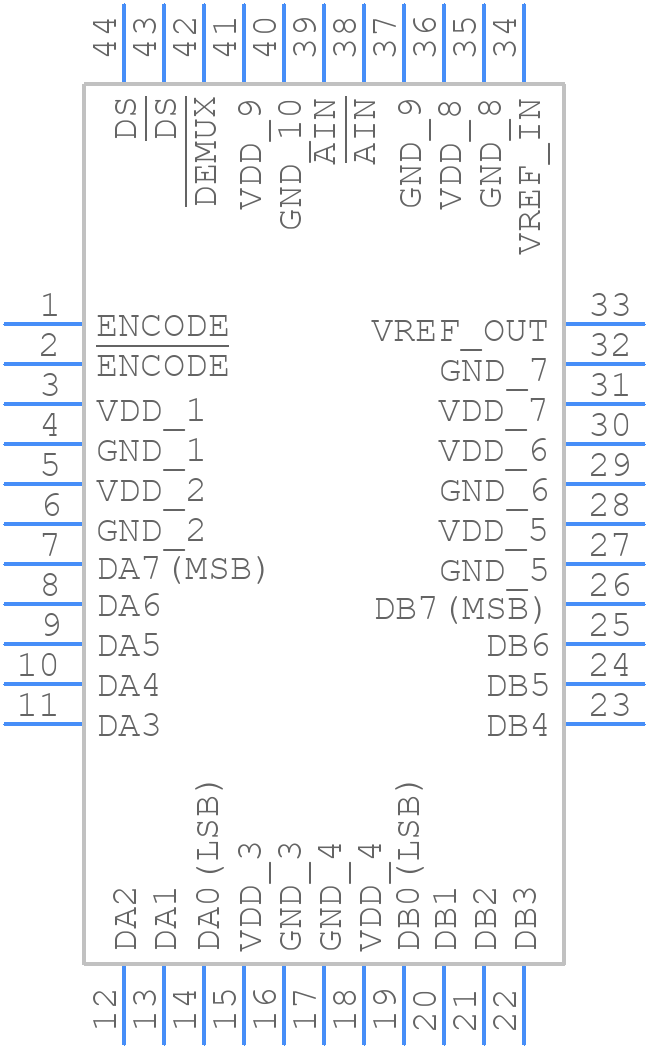

AD9054ABSTZ-135 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD9054ABSTZ-135 - Analog Devices PCB footprint - Quad Flat Packages - Quad Flat Packages - ST-44 (LQFP)
click to zoom
3D Models
AD9054ABSTZ-135 - Analog Devices - 3D model - Quad Flat Packages - ST-44 (LQFP)
click to zoom

AD9054ABSTZ-135 Details

  • Manufacturer Part Number:

    AD9054ABSTZ-135

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    QFP

  • Package Description:

    PLASTIC, LQFP-44

  • Pin Count:

    44

  • HTS Code:

    8542.39.00.30

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Analog Input Voltage-Max:

    0.512 V

  • Analog Input Voltage-Min:

    -0.512 V

  • Converter Type:

    ADC, FLASH METHOD

  • JESD-30 Code:

    S-PQFP-G44

  • JESD-609 Code:

    e3

  • Length:

    10 mm

  • Linearity Error-Max (EL):

    0.7812%

  • Moisture Sensitivity Level:

    3

  • Number of Analog In Channels:

    1

  • Number of Bits:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    44

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY

  • Output Format:

    PARALLEL, 8 BITS

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LQFP

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, LOW PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    135 MHz

  • Sample and Hold / Track and Hold:

    TRACK

  • Seated Height-Max:

    1.6 mm

  • Supply Current-Max:

    140 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    QUAD

  • Width:

    10 mm

AD9054ABSTZ-135 Frequently Asked Questions (FAQs)

  • A good PCB layout for the AD9054ABSTZ-135 involves separating the analog and digital grounds, using a solid ground plane, and keeping the analog and digital signal traces separate. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and to place the device close to the analog signal sources to minimize noise.
  • The differential input signals to the AD9054ABSTZ-135 should be terminated with a 100 ohm differential resistor (e.g., 2 x 50 ohm resistors in series) to match the impedance of the device. This helps to reduce reflections and ensure proper signal integrity.
  • The AD9054ABSTZ-135 can support clock frequencies up to 135 MSPS, but the actual maximum clock frequency may be limited by the specific application and the quality of the clock signal. It's recommended to consult the datasheet and application notes for more information.
  • The AD9054ABSTZ-135 has a programmable gain amplifier (PGA) that can be configured to accommodate different input signal ranges. The PGA gain can be set using the SPI interface, and the device also has an internal reference voltage that can be used to set the input range. Consult the datasheet and application notes for more information on how to configure the PGA for specific input signal ranges.
  • The power consumption of the AD9054ABSTZ-135 depends on the specific application and operating conditions. However, the device typically consumes around 350 mW at 135 MSPS. To reduce power consumption, consider using the device's power-down modes, reducing the clock frequency, or using a lower supply voltage. Consult the datasheet and application notes for more information on power management.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD9054ABSTZ-135 Overview

Use the download button to access the AD9054ABSTZ-135 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD905, or try a keyword search, such as Analog to Digital Converters

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
