AD9081BBPZRL-4D4AB - Analog Devices

Description: MxFE?? Quad, 16-Bit, 12GSPS RFDAC and Quad, 12-Bit, 4GSPS RFADC

Download AD9081BBPZRL-4D4AB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
AD9081BBPZRL-4D4AB - Analog Devices - PCB symbol
click to zoom
PCB Footprints

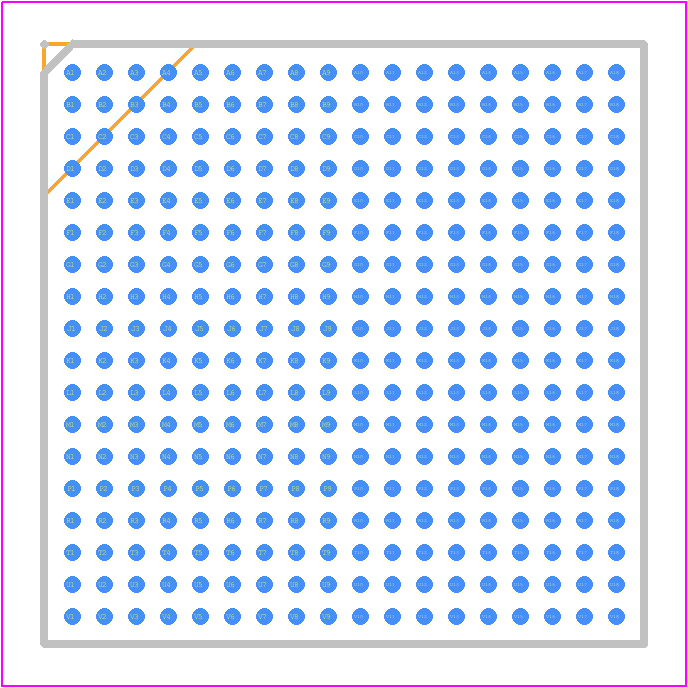

AD9081BBPZRL-4D4AB - Analog Devices PCB footprint - BGA - BGA - BGA THERM ENH W/ HEATSINK_2023
click to zoom
3D Models
AD9081BBPZRL-4D4AB - Analog Devices - 3D model - BGA - BGA THERM ENH W/ HEATSINK_2023
click to zoom

AD9081BBPZRL-4D4AB Details

  • Manufacturer Part Number:

    AD9081BBPZRL-4D4AB

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    324

  • Manufacturer Package Code:

    BP-324-3

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Moisture Sensitivity Level:

    3

  • Telecom IC Type:

    TELECOM CIRCUIT

AD9081BBPZRL-4D4AB Frequently Asked Questions (FAQs)

  • Analog Devices provides a recommended PCB layout and stackup in the AD9081BBPZRL-4D4AB evaluation board documentation, which can be found on their website. It's essential to follow these guidelines to ensure optimal performance, especially for high-frequency signals.
  • Analog Devices provides a clocking and synchronization guide for the AD9081BBPZRL-4D4AB, which covers topics such as clock domain crossing, synchronization modes, and clock jitter. Additionally, engineers can consult with Analog Devices' technical support team for customized guidance.
  • The AD9081BBPZRL-4D4AB has a maximum junction temperature of 125°C. To ensure reliable operation, engineers should implement proper thermal management techniques, such as heat sinking, thermal interface materials, and airflow management. Analog Devices provides thermal management guidelines in the datasheet and application notes.
  • Analog Devices provides a troubleshooting guide for the AD9081BBPZRL-4D4AB, which covers common issues and their solutions. Engineers can also consult with Analog Devices' technical support team for customized guidance and debugging tools.
  • Analog Devices offers radiation-hardened and high-reliability versions of the AD9081BBPZRL-4D4AB, such as the AD9081BBPZRL-4D4AB-RL and AD9081BBPZRL-4D4AB-RH. Engineers should consult with Analog Devices' technical support team to determine the appropriate version for their specific application and environmental requirements.
