AD9172BBPZ - Analog Devices

Description: Digital to Analog Converters - DAC Dual,16bit,12GSPS RFDAC1500MSPS Adj Rate

Download AD9172BBPZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

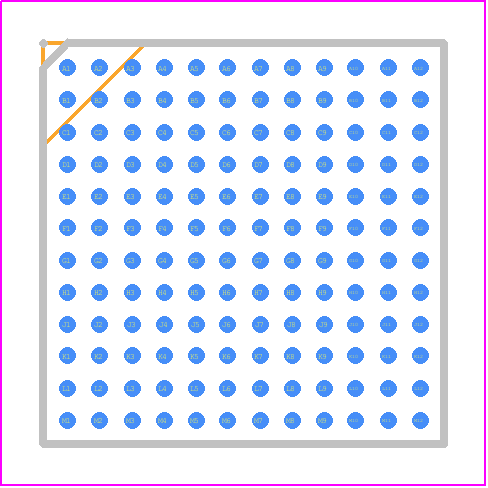

AD9172BBPZ - Analog Devices PCB footprint - BGA - BGA - BP-144-1
click to zoom
3D Models
AD9172BBPZ - Analog Devices  - 3D model - BGA - BP-144-1
click to zoom

AD9172BBPZ Details

  • Manufacturer Part Number:

    AD9172BBPZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CSBGA-144

  • Pin Count:

    144

  • Manufacturer Package Code:

    BP-144-1

  • Country Of Origin:

    South Korea

  • ECCN Code:

    3A001.A.5.B.2.A

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2017-06-30

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • JESD-30 Code:

    S-PBGA-B144

  • Length:

    10 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    144

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    FBGA

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, FINE PITCH

  • Seated Height-Max:

    1.71 mm

  • Supply Voltage-Nom:

    1 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    TELECOM CIRCUIT

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    BOTTOM

  • Width:

    10 mm

AD9172BBPZ Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply the analog power supplies (AVDD and DVDD) first, followed by the digital power supply (DVDD). This ensures that the analog circuitry is powered up before the digital circuitry.
  • To optimize performance, ensure that the device is operated within the recommended operating conditions, use a low-noise power supply, and minimize digital noise coupling into the analog circuitry. Additionally, use a high-quality clock source and ensure that the analog input signals are properly filtered and terminated.
  • The maximum data transfer rate of the AD9172BBPZ is 12.5 Gbps, which is achieved through the JESD204B interface.
  • The AD9172BBPZ can be configured for different Nyquist zones by adjusting the clock frequency and the decimation ratio. The device can be configured for 1st, 2nd, or 3rd Nyquist zones, depending on the application requirements.
  • The latency of the AD9172BBPZ is approximately 10 clock cycles, which corresponds to a latency of around 1.6 ns at a clock frequency of 6.4 GHz.
