AD9213BBP-10G-CSH - Analog Devices

AD9213BBP-10G-CSH Details

• Manufacturer Part Number:

  AD9213BBP-10G-CSH

• Brand Name:

  Analog Devices Inc

• Pbfree Code:

  No

• Part Life Cycle Code:

  Active

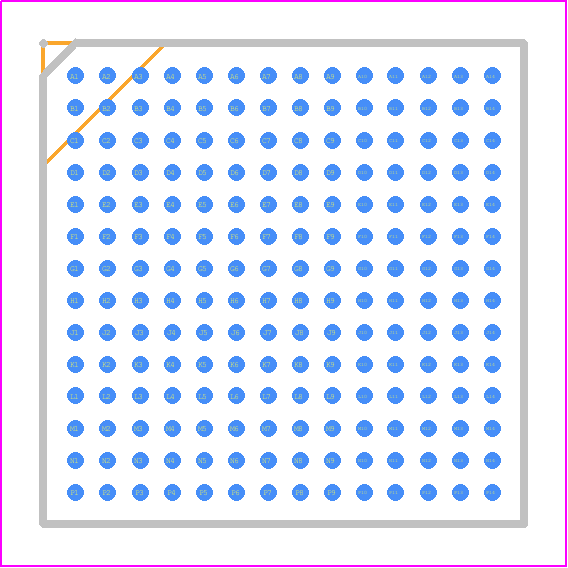

• Package Description:

  BGA-196/192

• Pin Count:

  192

• Manufacturer Package Code:

  BP-192-1

• ECCN Code:

  3A991.c.2

• HTS Code:

  8542.39.00.30

• Manufacturer:

  Analog Devices Inc

• YTEOL:

  8.5

• Analog Input Voltage-Max:

  1.4 V

• Analog Input Voltage-Min:

  -1.4 V

• Converter Type:

  ADC, PROPRIETARY METHOD

• JESD-30 Code:

  S-PBGA-B192

• Length:

  12 mm

• Linearity Error-Max (EL):

  0.1513671%

• Number of Analog In Channels:

  1

• Number of Bits:

  12

• Number of Functions:

  1

• Number of Terminals:

  192

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Output Bit Code:

  BINARY

• Output Format:

  SERIAL

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  FBGA

• Package Equivalence Code:

  QFI28,.43X.46

• Package Shape:

  SQUARE

• Package Style:

  GRID ARRAY, FINE PITCH

• Sample Rate:

  10250 MHz

• Seated Height-Max:

  1.71 mm

• Supply Current-Max:

  2790 mA

• Supply Voltage-Nom:

  1 V

• Surface Mount:

  YES

• Terminal Form:

  BALL

• Terminal Pitch:

  0.8 mm

• Terminal Position:

  BOTTOM

• Width:

  12 mm
