AD9214BRSZ-RL105 - Analog Devices

Description: Single Channel Single ADC Pipelined 105Msps 10-bit Parallel 28-Pin SSOP T/R

Download AD9214BRSZ-RL105 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

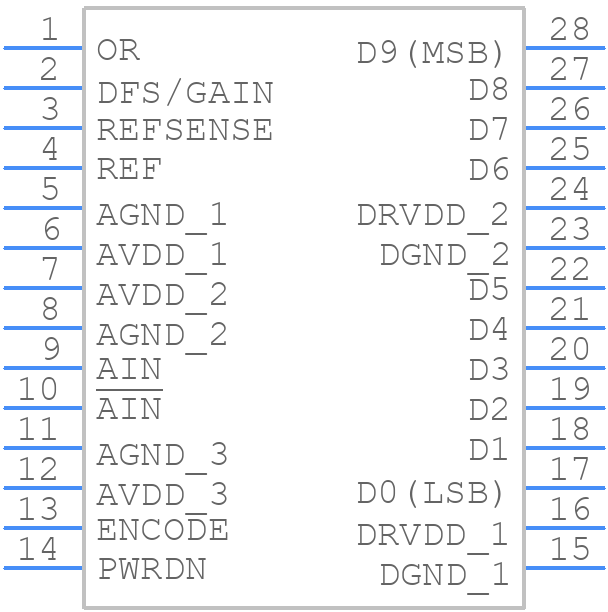

Symbol
AD9214BRSZ-RL105 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD9214BRSZ-RL105 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RS-28 (SOIC)
click to zoom
3D Models
AD9214BRSZ-RL105 - Analog Devices - 3D model - Small Outline Packages - RS-28 (SOIC)
click to zoom

AD9214BRSZ-RL105 Details

  • Manufacturer Part Number:

    AD9214BRSZ-RL105

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SSOP

  • Package Description:

    PLASTIC, SSOP-28

  • Pin Count:

    28

  • Manufacturer Package Code:

    RS-28

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog Input Voltage-Max:

    2 V

  • Analog Input Voltage-Min:

    -2 V

  • Conversion Time-Max:

    0.01 µs

  • Converter Type:

    ADC, PROPRIETARY METHOD

  • JESD-30 Code:

    R-PDSO-G28

  • JESD-609 Code:

    e3

  • Length:

    10.2 mm

  • Linearity Error-Max (EL):

    0.2441%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    1

  • Number of Bits:

    10

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    OFFSET BINARY, 2S COMPLEMENT BINARY

  • Output Format:

    PARALLEL, WORD

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP28,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    105 MHz

  • Sample and Hold / Track and Hold:

    TRACK

  • Seated Height-Max:

    2 mm

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    5.3 mm

AD9214BRSZ-RL105 Frequently Asked Questions (FAQs)

  • A good PCB layout is crucial for the AD9214BRSZ-RL105's performance. Analog Devices recommends a 4-layer PCB with a solid ground plane, and to keep the analog and digital sections separate. The datasheet provides a recommended layout, but it's also recommended to consult with a PCB design expert and to follow good high-speed PCB design practices.
  • The clock input is critical for the AD9214BRSZ-RL105's performance. To optimize the clock input, use a low-jitter clock source, and ensure that the clock signal is properly terminated and routed. The datasheet recommends a clock amplitude of 1.0 V to 1.2 V, and a clock frequency of 1.5 GHz to 2.5 GHz. Additionally, it's recommended to use a clock buffer or a clock distribution network to ensure a clean and stable clock signal.
  • The recommended power-up sequence for the AD9214BRSZ-RL105 is to first power up the analog supply (VCC), followed by the digital supply (VDD), and then the clock input. This sequence helps to prevent latch-up and ensures proper device operation. It's also recommended to follow a slow power-up ramp to prevent voltage overshoots and undershoots.
  • The AD9214BRSZ-RL105 is a high-speed device that generates heat. To handle thermal management, it's recommended to use a heat sink or a thermal pad on the device, and to ensure good airflow around the device. The datasheet provides thermal resistance values, and it's recommended to follow good thermal design practices to keep the device junction temperature below 125°C.
  • Debugging the AD9214BRSZ-RL105 can be challenging due to its high-speed nature. Analog Devices recommends using a logic analyzer or a high-speed oscilloscope to capture and analyze the device's digital outputs. It's also recommended to use a debugging tool such as a JTAG interface or a serial interface to access the device's internal registers and status bits.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD9214BRSZ-RL105 Overview

Use the download button to access the AD9214BRSZ-RL105 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD921, or try a keyword search, such as Analog to Digital Converters

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
