AD9215BRUZ-65 - Analog Devices

Description: AD9215BRUZ-65, 10-Bit Analogue to Digital Converter, Differential, Parallel, 28-Pin TSSOP

Download AD9215BRUZ-65 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

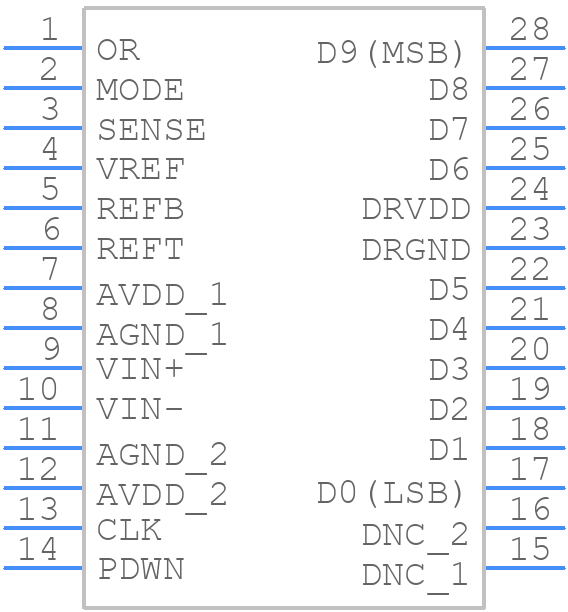

AD9215BRUZ-65 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD9215BRUZ-65 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - AD9215BRUZ-65-1
click to zoom
3D Models
AD9215BRUZ-65 - Analog Devices - 3D model - Small Outline Packages - AD9215BRUZ-65-1
click to zoom

AD9215BRUZ-65 Details

  • Manufacturer Part Number:

    AD9215BRUZ-65

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    PLASTIC, MO-153AE, TSSOP-28

  • Pin Count:

    28

  • Manufacturer Package Code:

    RU-28

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    2 V

  • Analog Input Voltage-Min:

    -2 V

  • Conversion Time-Max:

    0.009523 µs

  • Converter Type:

    ADC, FLASH METHOD

  • JESD-30 Code:

    R-PDSO-G28

  • JESD-609 Code:

    e3

  • Length:

    9.7 mm

  • Linearity Error-Max (EL):

    0.1172%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    1

  • Number of Bits:

    10

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    OFFSET BINARY, 2S COMPLEMENT BINARY

  • Output Format:

    PARALLEL, WORD

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP28,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    65 MHz

  • Sample and Hold / Track and Hold:

    SAMPLE

  • Seated Height-Max:

    1.2 mm

  • Supply Current-Max:

    35 mA

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

AD9215BRUZ-65 Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate analog ground plane is recommended. Keep the analog and digital grounds separate and connect them at a single point. Use a star topology for the power supply and decouple the power pins with 0.1uF and 10uF capacitors.
  • Use a low-jitter clock source (<100ps) and a 50Ω transmission line to drive the clock input. Terminate the clock line with a 50Ω resistor to match the impedance. Use a clock signal with a frequency of 1.25GHz or higher to ensure reliable operation.
  • Power up the device in the following sequence: AVDD, DVDD, and then CLK+. Ensure that the power supplies are stable and within the recommended voltage range before applying the clock signal.
  • Use a DDR (Double Data Rate) interface to capture the output data on both the rising and falling edges of the clock. Use a FIFO or a buffer to handle the high-speed data output and ensure that the receiving device can handle the data rate.
  • Use a heat sink with a thermal conductivity of at least 1W/m-K and a thermal interface material with a thermal conductivity of at least 5W/m-K. Ensure good airflow around the device and avoid blocking the airflow. Monitor the device temperature and adjust the heat sink design as needed.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD9215BRUZ-65 Overview

Use the download button to access the AD9215BRUZ-65 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD921, or try a keyword search, such as Analog to Digital Converters
