AD9225ARZRL - Analog Devices

Description: 12-Bit , 25 MSPS Monolithic A/D Converter –0.3V +6.5V , –65C ~ +150C

Download AD9225ARZRL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

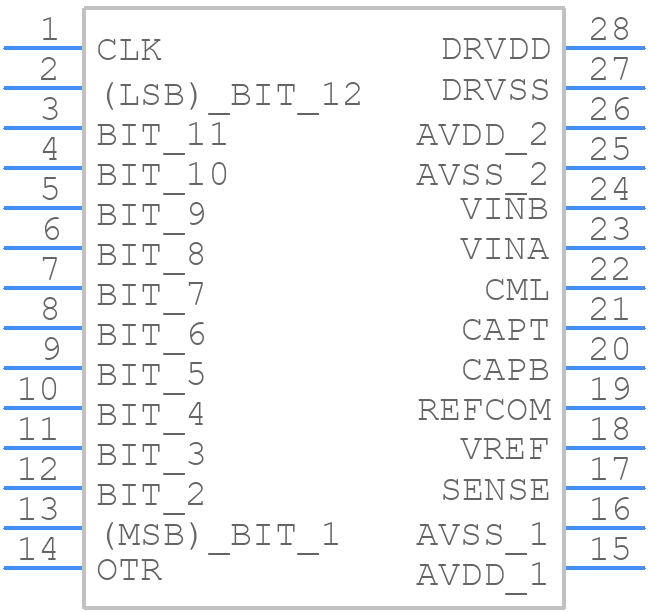

Symbol
AD9225ARZRL - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD9225ARZRL - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RW-28 (SOIC)
click to zoom
3D Models
AD9225ARZRL - Analog Devices - 3D model - Small Outline Packages - RW-28 (SOIC)
click to zoom

AD9225ARZRL Details

  • Manufacturer Part Number:

    AD9225ARZRL

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    MS-013AE, SOIC-28

  • Pin Count:

    28

  • Manufacturer Package Code:

    RW-28

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    5 V

  • Converter Type:

    ADC, PROPRIETARY METHOD

  • JESD-30 Code:

    R-PDSO-G28

  • JESD-609 Code:

    e3

  • Length:

    17.9 mm

  • Linearity Error-Max (EL):

    0.061%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    1

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY

  • Output Format:

    PARALLEL, WORD

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP28,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    25 MHz

  • Sample and Hold / Track and Hold:

    SAMPLE

  • Seated Height-Max:

    2.65 mm

  • Supply Current-Max:

    72.5 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.5 mm

AD9225ARZRL Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the AD9225ARZRL can be found in the AD9225 Evaluation Board documentation, which provides a detailed layout guide and Gerber files for reference. Additionally, Analog Devices provides a PCB layout checklist in the AD9225 datasheet that highlights key considerations for signal integrity and thermal management.
  • To optimize the AD9225ARZRL's performance, it's essential to understand the specific requirements of your application, such as signal frequency, amplitude, and noise tolerance. Analog Devices provides a range of application notes and design tools, including the AD9225 Evaluation Board and the ADIsimADC simulation tool, to help engineers optimize the ADC's performance for their specific use case.
  • The maximum clock frequency that can be used with the AD9225ARZRL is 65 MSPS, as specified in the datasheet. However, the actual clock frequency that can be achieved may be limited by the specific application and PCB layout. It's essential to consult the datasheet and application notes for guidance on clock frequency selection and layout considerations.
  • The AD9225ARZRL's digital output data is provided in a 12-bit, 2's complement format. Engineers can use a variety of methods to handle this data, including using a FIFO buffer, a DSP or microcontroller, or a dedicated interface chip such as the AD9640. Analog Devices provides a range of application notes and code examples to help engineers interface with the AD9225ARZRL's digital output.
  • The power consumption of the AD9225ARZRL varies depending on the specific operating conditions, but it is typically around 125 mW at 65 MSPS. To minimize power consumption, engineers can use techniques such as reducing the clock frequency, using the ADC's power-down mode, and optimizing the PCB layout for thermal management. Analog Devices provides a range of application notes and design tools to help engineers minimize power consumption and optimize system-level power efficiency.
