- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for AD9228ABCPZ-40
- Part Number AD9228ABCPZ-40
- Manufacturer Analog Devices
- Pin Count 49
- Part Category Integrated Circuit
- Package Category Other
- Footprint Name Other - QFN50P700X700X100-49N
- Released Date Jan 11, 2017
- Last Modified Date May 7, 2025 11:33 AM UTC
- Pinout / Pin List Click Here (Member Only)
AD9228ABCPZ-40 Details
-
Manufacturer Part Number:
AD9228ABCPZ-40
-
Brand Name:
Analog Devices Inc
-
Pbfree Code:
No
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Part Package Code:
QFN
-
Package Description:
7 X 7 MM, ROHS COMPLIANT, MO-220VKKD-2, LFCSP-48
-
Pin Count:
48
-
Manufacturer Package Code:
CP-48-9
-
Country Of Origin:
Singapore
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.01
AD9228ABCPZ-40 Frequently Asked Questions (FAQs)
-
A good PCB layout for the AD9228ABCPZ-40 involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the analog input traces. It's also recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
-
To optimize the performance of the AD9228ABCPZ-40 in a noisy environment, use shielding, filtering, and grounding techniques to minimize electromagnetic interference (EMI). Additionally, use a low-pass filter at the input to remove high-frequency noise, and consider using a common-mode filter to reduce common-mode noise.
-
The maximum clock frequency that can be used with the AD9228ABCPZ-40 is 65 MSPS. However, the actual clock frequency used may be limited by the specific application and the quality of the clock signal.
-
To ensure that the AD9228ABCPZ-40 is properly calibrated, follow the calibration procedure outlined in the datasheet, which involves applying a known input signal and adjusting the offset and gain settings accordingly. It's also recommended to perform periodic recalibration to maintain optimal performance.
-
The power consumption of the AD9228ABCPZ-40 is typically around 330 mW at a supply voltage of 3.3 V and a clock frequency of 65 MSPS. However, the actual power consumption may vary depending on the specific application and operating conditions.
Trust Checks
System Verified
AD9228ABCPZ-40 Overview

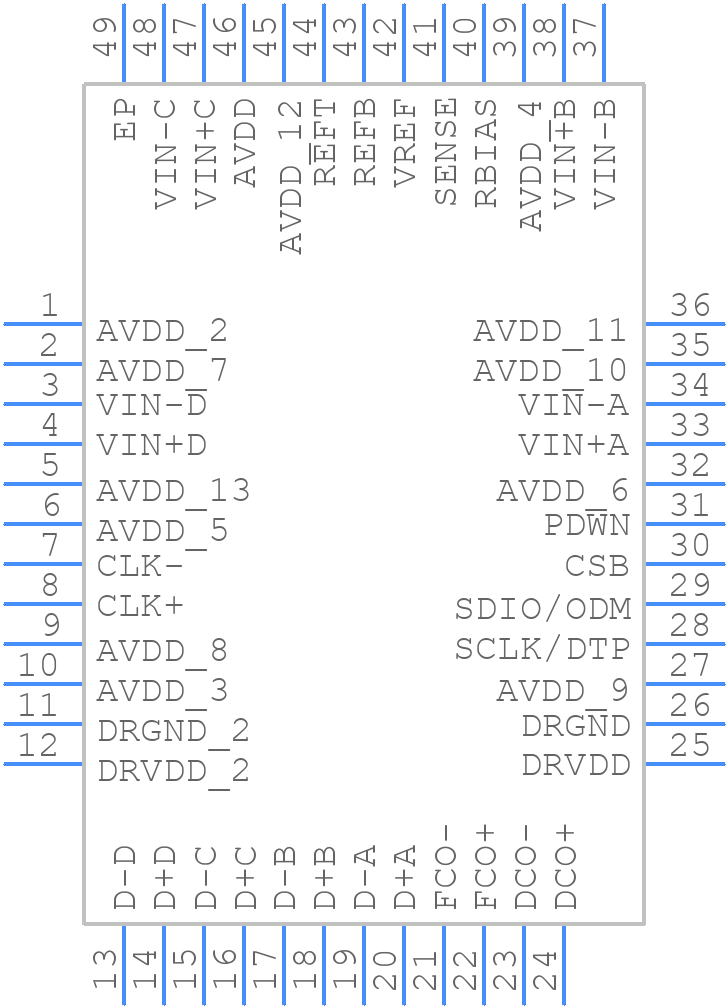

Use the download button to access the AD9228ABCPZ-40 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD922,
or try a keyword search, such as Analog to Digital Converters
About Analog Devices
Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries.
Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
