- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for AD9229ABCPZ-65
- Part Number AD9229ABCPZ-65
- Manufacturer Analog Devices
- Pin Count 49
- Part Category Integrated Circuit
- Package Category Quad Flat No-Lead
- Footprint Name Quad Flat No-Lead - CP-48-8 QFN
- Released Date Jan 11, 2017
- Last Modified Date Nov 15, 2024 1:35 PM UTC
- Pinout / Pin List Click Here (Member Only)
AD9229ABCPZ-65 Details
-
Manufacturer Part Number:
AD9229ABCPZ-65
-
Brand Name:
Analog Devices Inc
-
Pbfree Code:
No
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Part Package Code:
QFN
-
Package Description:
HVQCCN-48
-
Pin Count:
48
-
Manufacturer Package Code:
CP-48-9
-
Country Of Origin:
Singapore
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.01
AD9229ABCPZ-65 Frequently Asked Questions (FAQs)
-
The recommended PCB layout for the AD9229ABCPZ-65 can be found in the AD9229 Evaluation Board documentation, which provides a detailed layout guide and Gerber files for reference. Additionally, Analog Devices provides a PCB layout checklist in the AD9229 datasheet that highlights key considerations for signal integrity, power supply decoupling, and thermal management.
-
To optimize the analog input stage for the AD9229ABCPZ-65, ensure that the input signal is properly terminated and matched to the ADC's input impedance. Use a low-pass filter or an anti-aliasing filter to remove high-frequency noise and prevent aliasing. Also, consider using a differential input stage with a common-mode voltage of around 1.5V to 2.5V to minimize common-mode noise and improve dynamic range.
-
The AD9229ABCPZ-65 can operate with clock frequencies up to 65 MSPS, but the maximum clock frequency may be limited by the specific application and system requirements. It's recommended to consult the datasheet and evaluate the ADC's performance at the desired clock frequency to ensure optimal operation.
-
The AD9229ABCPZ-65 outputs 12-bit digital data in a CMOS-compatible format. To handle the digital output data, use a digital signal processor (DSP) or a field-programmable gate array (FPGA) to capture and process the data. Ensure that the digital interface is properly terminated and matched to the receiving device's input impedance to prevent signal reflections and errors.
-
The power consumption of the AD9229ABCPZ-65 depends on the operating conditions, such as the clock frequency, input voltage range, and output data rate. According to the datasheet, the typical power consumption is around 125 mW at 65 MSPS, but this can vary depending on the specific application. Consult the datasheet and evaluate the power consumption in the target system to ensure proper power supply design and thermal management.
Trust Checks
Community Provided
System Verified
Community Approved
AD9229ABCPZ-65 Overview

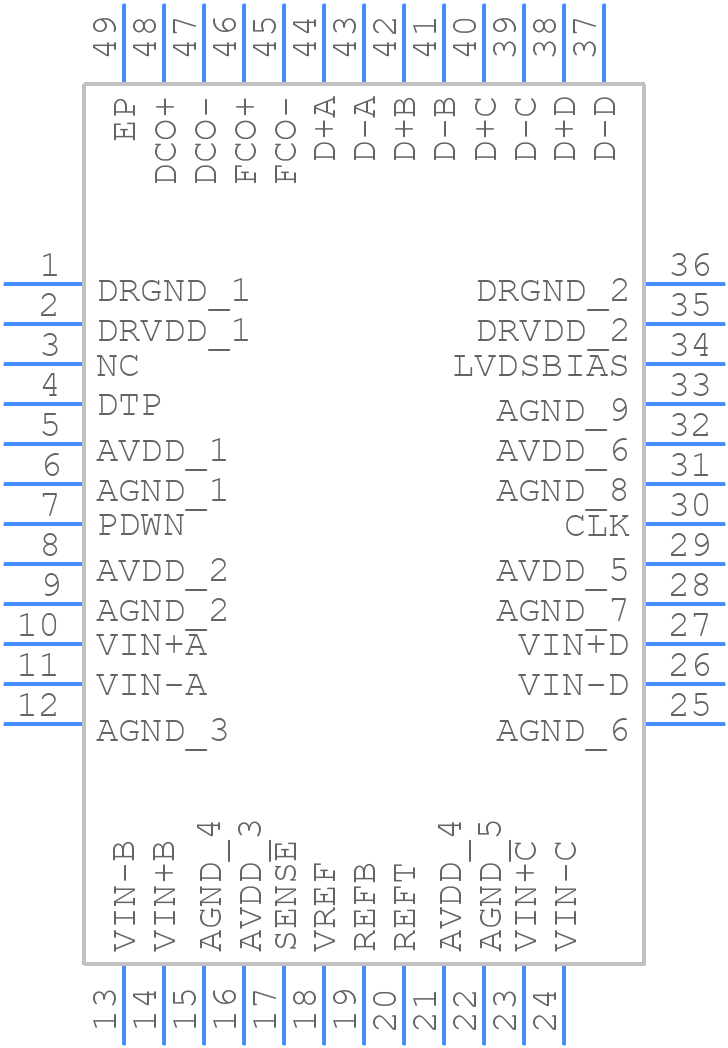

Use the download button to access the AD9229ABCPZ-65 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD922,
or try a keyword search, such as Analog to Digital Converters
