AD9231BCPZRL7-80 - Analog Devices

Description: Dual Analog-to-Digital Converter

Download AD9231BCPZRL7-80 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
AD9231BCPZRL7-80 - Analog Devices - PCB symbol
click to zoom
PCB Footprints

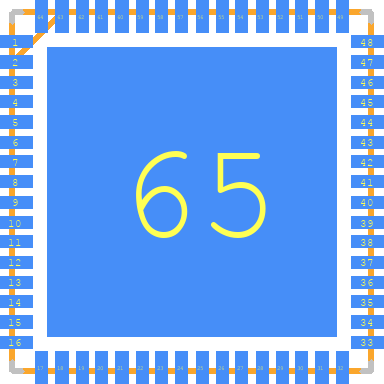

AD9231BCPZRL7-80 - Analog Devices PCB footprint - Other - Other - QFN50P900X900X100-65N
click to zoom
3D Models
AD9231BCPZRL7-80 - Analog Devices - 3D model - Other - QFN50P900X900X100-65N
click to zoom

AD9231BCPZRL7-80 Details

  • Manufacturer Part Number:

    AD9231BCPZRL7-80

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Package Description:

    LFCSP-64

  • Pin Count:

    64

  • Manufacturer Package Code:

    CP-64-4

  • Country Of Origin:

    Singapore

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    2 V

  • Analog Input Voltage-Min:

    -2 V

  • Conversion Time-Max:

    0.33333333 µs

  • Converter Type:

    ADC, PIPELINED

  • JESD-30 Code:

    S-XQCC-N64

  • JESD-609 Code:

    e3

  • Length:

    9 mm

  • Linearity Error-Max (EL):

    0.015869%

  • Moisture Sensitivity Level:

    3

  • Number of Analog In Channels:

    2

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    64

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    OFFSET BINARY, 2S COMPLEMENT BINARY, GRAY CODE

  • Output Format:

    SERIAL

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC64,.35SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    80 MHz

  • Sample and Hold / Track and Hold:

    SAMPLE

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max:

    83.4 mA

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    9 mm

AD9231BCPZRL7-80 Frequently Asked Questions (FAQs)

  • A good PCB layout for the AD9231BCPZRL7-80 involves keeping the analog and digital sections separate, using a solid ground plane, and minimizing noise coupling between the analog and digital signals. A 4-layer PCB with a dedicated analog ground plane is recommended. Additionally, the datasheet provides a recommended PCB layout and land pattern that should be followed.
  • To optimize the performance of the AD9231BCPZRL7-80, ensure that the input signal is properly terminated, and the analog supply voltage is clean and well-regulated. Additionally, optimize the clock frequency and clock jitter, and use a low-noise reference voltage. Proper PCB layout and decoupling of the analog and digital supplies are also crucial. Finally, adjust the gain and offset settings to optimize the dynamic range and linearity of the converter.
  • The maximum clock frequency that can be used with the AD9231BCPZRL7-80 is 80 MSPS, as indicated by the '-80' in the part number. However, the actual clock frequency used may be limited by the specific application and system requirements.
  • Yes, the AD9231BCPZRL7-80 can be used in a multi-channel application. However, each channel requires a separate ADC and clock signal. The datasheet provides guidance on how to synchronize multiple channels and minimize crosstalk and noise coupling between channels.
  • The power consumption of the AD9231BCPZRL7-80 is typically around 125 mW at 80 MSPS. Power consumption can be minimized by reducing the clock frequency, using a lower analog supply voltage, and optimizing the digital output format and interface. Additionally, the ADC can be powered down when not in use to reduce standby power consumption.
