AD9239BCPZ-210 - Analog Devices

Description: 1.8 V Analog-to-Digital Converter

Download AD9239BCPZ-210 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

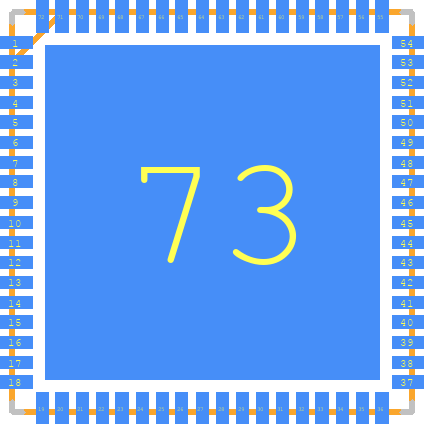

AD9239BCPZ-210 - Analog Devices PCB footprint - Other - Other - QFN50P1000X1000X100-73N
click to zoom
3D Models
AD9239BCPZ-210 - Analog Devices  - 3D model - Other - QFN50P1000X1000X100-73N
click to zoom

AD9239BCPZ-210 Details

  • Manufacturer Part Number:

    AD9239BCPZ-210

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Package Description:

    10 X 10 MM, ROHS COMPLIANT, MO-220VNND-4, LFCSP-72

  • Pin Count:

    72

  • Manufacturer Package Code:

    CP-72-3

  • Country Of Origin:

    Singapore

  • ECCN Code:

    3A991.C.2

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    1.5 V

  • Analog Input Voltage-Min:

    1 V

  • Converter Type:

    ADC, PROPRIETARY METHOD

  • JESD-30 Code:

    S-XQCC-N72

  • JESD-609 Code:

    e3

  • Length:

    10 mm

  • Linearity Error-Max (EL):

    0.0317%

  • Moisture Sensitivity Level:

    3

  • Number of Analog In Channels:

    4

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    72

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY, OFFSET BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC72,.39SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    210 MHz

  • Sample and Hold / Track and Hold:

    SAMPLE

  • Seated Height-Max:

    1 mm

  • Supply Current-Max:

    650 mA

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    10 mm

AD9239BCPZ-210 Frequently Asked Questions (FAQs)

  • A good PCB layout for the AD9239BCPZ-210 involves separating the analog and digital sections, using a solid ground plane, and placing decoupling capacitors close to the device. Additionally, it's recommended to use a 4-layer PCB with a dedicated layer for the analog supply, a dedicated layer for the digital supply, and two layers for signals and ground. Analog Devices provides a recommended PCB layout in the AD9239 evaluation board documentation.
  • To optimize the clock input to the AD9239BCPZ-210, use a low-jitter clock source, such as a crystal oscillator or a high-quality clock generator. The clock signal should be routed close to the device and terminated with a 50-ohm resistor to match the clock input impedance. Additionally, ensure that the clock signal is clean and free of noise by using a clock buffer or a clock conditioner if necessary.
  • The recommended power-up sequence for the AD9239BCPZ-210 is to first power up the analog supply (AVDD) followed by the digital supply (DVDD). This ensures that the analog circuitry is powered up before the digital circuitry, which helps to prevent digital noise from coupling into the analog circuitry.
  • The AD9239BCPZ-210 outputs 14-bit or 12-bit data, depending on the mode of operation. The output data should be captured and processed using a digital signal processor (DSP) or a field-programmable gate array (FPGA). The recommended data processing flow involves offset correction, gain correction, and filtering to remove noise and artifacts.
  • The maximum sampling rate of the AD9239BCPZ-210 is 210 MSPS. The power consumption of the device increases with the sampling rate, so operating at lower sampling rates can help reduce power consumption. However, the device is designed to operate at high sampling rates, and the power consumption is relatively low even at the maximum sampling rate.
