AD9253BCPZRL7-125 - Analog Devices

Description: Quad, 14-Bit, 80 MSPS/105 MSPS/125 MSPS Serial LVDS 1.8 V Analog-to-Digital Converter

Download AD9253BCPZRL7-125 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

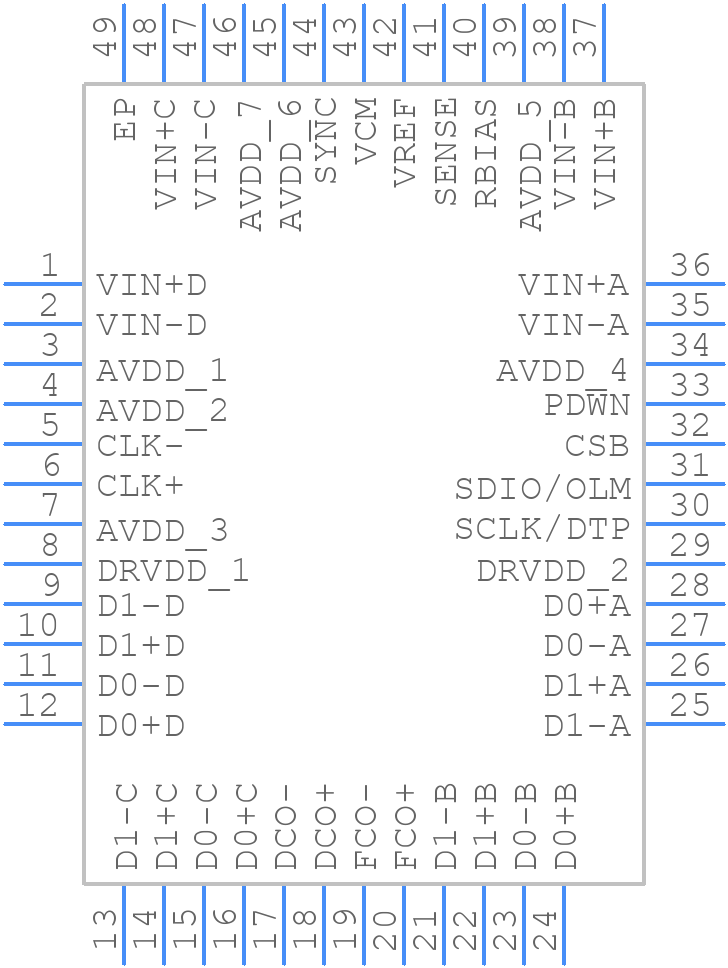

Symbol
AD9253BCPZRL7-125 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD9253BCPZRL7-125 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - (CP-48-13).
click to zoom
3D Models
AD9253BCPZRL7-125 - Analog Devices - 3D model - Quad Flat No-Lead - (CP-48-13).
click to zoom

AD9253BCPZRL7-125 Details

  • Manufacturer Part Number:

    AD9253BCPZRL7-125

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Package Description:

    LFCSP-48

  • Pin Count:

    48

  • Manufacturer Package Code:

    CP-48-13

  • Country Of Origin:

    Philippines

  • ECCN Code:

    3A991.C.3

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    2 V

  • Analog Input Voltage-Min:

    -2 V

  • Conversion Time-Max:

    0.008 µs

  • Converter Type:

    ADC, FLASH METHOD

  • JESD-30 Code:

    S-XQCC-N48

  • Length:

    7 mm

  • Linearity Error-Max (EL):

    0.0244%

  • Moisture Sensitivity Level:

    3

  • Number of Analog In Channels:

    4

  • Number of Bits:

    14

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    OFFSET BINARY, 2S COMPLEMENT BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC48,.27SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    125 MHz

  • Sample and Hold / Track and Hold:

    SAMPLE

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max:

    1.8 mA

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7 mm

AD9253BCPZRL7-125 Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the AD9253BCPZRL7-125 can be found in the AD9253 Evaluation Board documentation, which provides a detailed layout guide and Gerber files for reference. Additionally, Analog Devices provides a PCB layout guide document that provides general guidelines for designing a PCB for the AD9253.
  • To optimize the performance of the AD9253BCPZRL7-125, it is recommended to follow the guidelines provided in the datasheet and application notes. Additionally, Analog Devices provides a range of tools and resources, including simulation models, evaluation boards, and software development kits, to help engineers optimize the performance of the AD9253 in their specific application.
  • The maximum clock frequency that can be used with the AD9253BCPZRL7-125 is 125 MSPS, as indicated by the '-125' suffix in the part number. However, the actual clock frequency used may be limited by the specific application and system requirements.
  • Yes, the AD9253BCPZRL7-125 can be used in a multi-channel application. The device has a dedicated clock input and output, which allows it to be synchronized with other AD9253 devices in a multi-channel system. Additionally, the device's digital output can be configured to support multiple channels.
  • The power consumption of the AD9253BCPZRL7-125 depends on the specific operating conditions and application. According to the datasheet, the typical power consumption of the device is 330 mW at 125 MSPS, with a 1.8 V analog supply and a 1.2 V digital supply. However, the actual power consumption may vary depending on the specific use case.
