AD9253BCPZRL7-80 - Analog Devices

Description: Quad, 14-Bit, 80 MSPS/105 MSPS/125 MSPS Serial LVDS 1.8 V Analog-to-Digital Converter

Download AD9253BCPZRL7-80 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

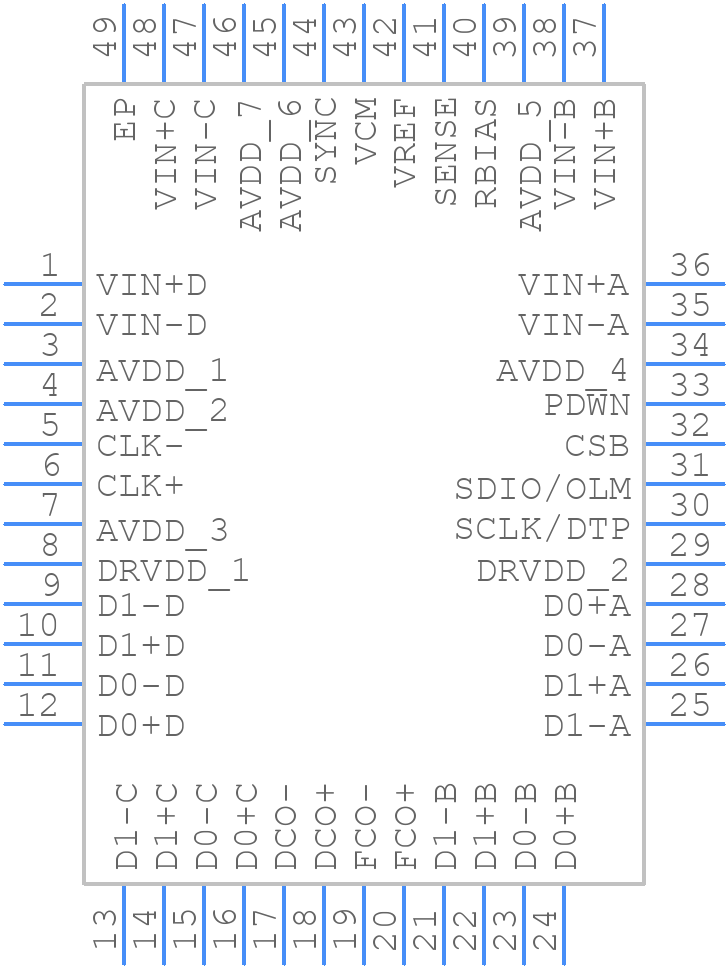

Symbol
AD9253BCPZRL7-80 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD9253BCPZRL7-80 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - (CP-48-13).
click to zoom
3D Models
AD9253BCPZRL7-80 - Analog Devices - 3D model - Quad Flat No-Lead - (CP-48-13).
click to zoom

AD9253BCPZRL7-80 Details

  • Manufacturer Part Number:

    AD9253BCPZRL7-80

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Package Description:

    LFCSP-48

  • Pin Count:

    48

  • Manufacturer Package Code:

    CP-48-13

  • Country Of Origin:

    Philippines

  • ECCN Code:

    3A991.C.3

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    2 V

  • Analog Input Voltage-Min:

    -2 V

  • Conversion Time-Max:

    0.0125 µs

  • Converter Type:

    ADC, FLASH METHOD

  • JESD-30 Code:

    S-XQCC-N48

  • Length:

    7 mm

  • Linearity Error-Max (EL):

    0.0244%

  • Moisture Sensitivity Level:

    3

  • Number of Analog In Channels:

    4

  • Number of Bits:

    14

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    OFFSET BINARY, 2S COMPLEMENT BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC48,.27SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    80 MHz

  • Sample and Hold / Track and Hold:

    SAMPLE

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max:

    1.8 mA

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7 mm

AD9253BCPZRL7-80 Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the AD9253BCPZRL7-80 can be found in the AD9253 Evaluation Board documentation, which provides a detailed layout guide and Gerber files for reference. Additionally, Analog Devices provides a PCB layout checklist in the AD9253 datasheet that highlights key considerations for signal integrity, power supply decoupling, and thermal management.
  • To optimize the performance of the AD9253BCPZRL7-80, it's essential to carefully consider the analog input signal chain, including the signal source, amplification, filtering, and impedance matching. Additionally, ensure proper power supply decoupling, thermal management, and clock signal quality. Analog Devices provides application notes and technical articles that offer guidance on optimizing the AD9253's performance in various applications.
  • The AD9253BCPZRL7-80 can operate with clock frequencies up to 640 MHz, but the maximum clock frequency may be limited by the specific application and PCB layout. It's essential to ensure that the clock signal meets the specified jitter and phase noise requirements to maintain optimal performance.
  • To troubleshoot issues with the AD9253BCPZRL7-80, start by reviewing the datasheet and application notes to ensure that the device is properly configured and operated within its specifications. Use oscilloscopes and logic analyzers to debug the analog input signals, clock signals, and digital output data. Analog Devices also provides technical support and resources, such as the EngineerZone forum, to help resolve issues and answer questions.
  • The AD9253BCPZRL7-80 is not specifically designed or qualified for radiation-hardened or high-reliability applications. However, Analog Devices offers other products that are designed and tested for such applications, such as the RAD-Tolerant and High-Reliability product lines. It's essential to consult with Analog Devices' technical support and review the relevant documentation to determine the suitability of the AD9253BCPZRL7-80 or alternative products for your specific application.
