AD9254BCPZRL7-150 - Analog Devices

Description: Analog to Digital Converters - ADC 14-Bit 150 MSPS 1.8V

Download AD9254BCPZRL7-150 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

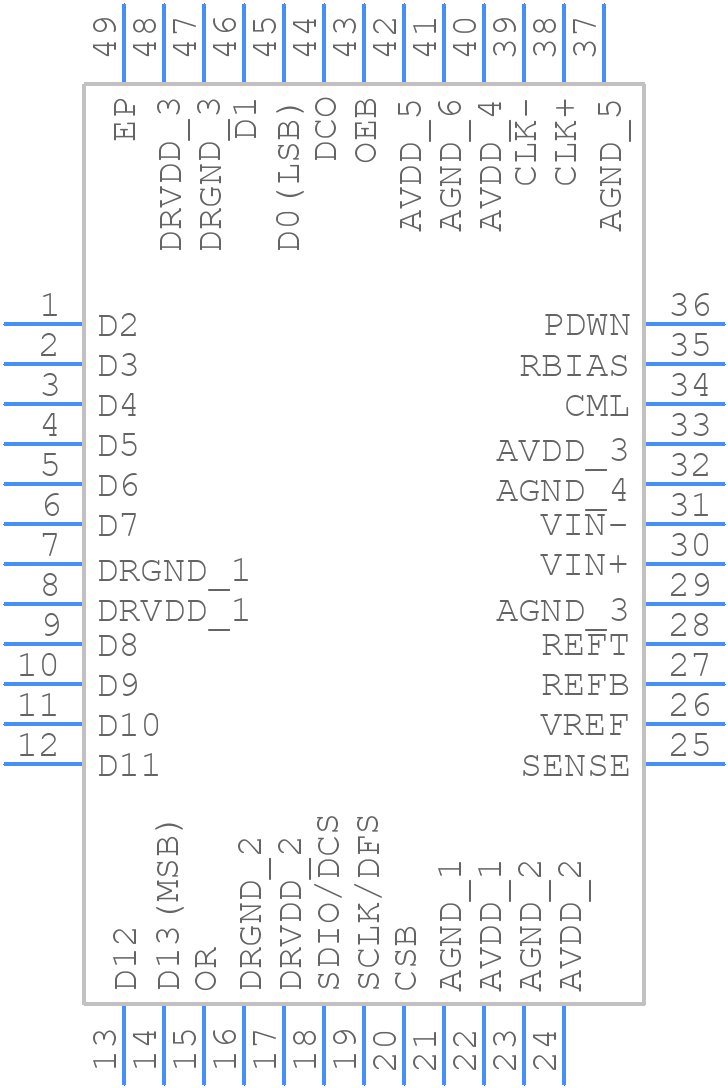

AD9254BCPZRL7-150 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD9254BCPZRL7-150 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - . 48-Lead Lead Frame Chip Scale Package [LFCSP_VQ]-a
click to zoom
3D Models
AD9254BCPZRL7-150 - Analog Devices - 3D model - Quad Flat No-Lead - . 48-Lead Lead Frame Chip Scale Package [LFCSP_VQ]-a
click to zoom

AD9254BCPZRL7-150 Details

  • Manufacturer Part Number:

    AD9254BCPZRL7-150

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Package Description:

    LFCSP-48

  • Pin Count:

    48

  • Manufacturer Package Code:

    CP-48-5

  • Country Of Origin:

    Singapore

  • ECCN Code:

    3A991.C.3

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    2 V

  • Analog Input Voltage-Min:

    -2 V

  • Conversion Time-Max:

    0.1 µs

  • Converter Type:

    ADC, FLASH METHOD

  • JESD-30 Code:

    S-XQCC-N48

  • JESD-609 Code:

    e3

  • Length:

    7 mm

  • Linearity Error-Max (EL):

    0.0305%

  • Moisture Sensitivity Level:

    3

  • Number of Analog In Channels:

    1

  • Number of Bits:

    14

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    OFFSET BINARY, 2S COMPLEMENT BINARY, GRAY CODE

  • Output Format:

    PARALLEL, WORD

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC48,.27SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    150 MHz

  • Sample and Hold / Track and Hold:

    SAMPLE

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max:

    260 mA

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7 mm

AD9254BCPZRL7-150 Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the AD9254BCPZRL7-150 can be found in the AD9254 Evaluation Board documentation, which provides a detailed layout guide and Gerber files for reference. Additionally, Analog Devices provides a PCB layout guide document that provides general guidelines for high-speed analog-to-digital converters like the AD9254.
  • To optimize the performance of the AD9254BCPZRL7-150, it's essential to follow the recommended layout and routing guidelines, ensure proper power supply decoupling, and optimize the analog input signal conditioning. Additionally, Analog Devices provides an AD9254 Evaluation Board and software tools that can help engineers optimize the performance of the device in their specific application.
  • The maximum clock frequency that can be used with the AD9254BCPZRL7-150 is 150 MSPS, as indicated by the '150' in the part number. However, the actual clock frequency used may be limited by the specific application requirements and the quality of the clock signal.
  • The AD9254BCPZRL7-150 outputs digital data in a CMOS-compatible format. To handle the digital output data, engineers can use a FPGA, ASIC, or a microcontroller with a high-speed digital interface. The digital output data can be processed and analyzed using software tools and algorithms, such as digital signal processing techniques.
  • The power consumption of the AD9254BCPZRL7-150 depends on the specific operating conditions, such as the clock frequency, analog input voltage range, and digital output format. According to the datasheet, the typical power consumption of the AD9254BCPZRL7-150 is around 330 mW at 150 MSPS, with a 1.8 V analog supply and a 3.3 V digital supply.
