AD9258BCPZRL7-80 - Analog Devices

Description: 14-Bit, 125 MSPS, 1.8 V Dual Analog-to-Digital Converter (ADC)

Download AD9258BCPZRL7-80 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
AD9258BCPZRL7-80 - Analog Devices - PCB symbol
click to zoom
PCB Footprints

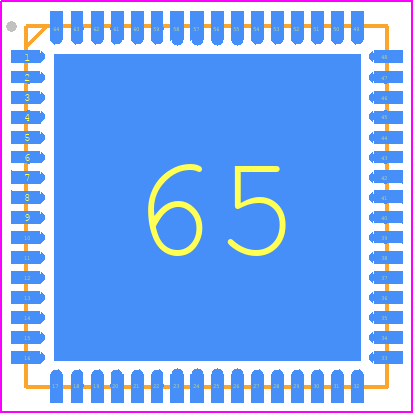

AD9258BCPZRL7-80 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - CP-64-6
click to zoom
3D Models
AD9258BCPZRL7-80 - Analog Devices - 3D model - Quad Flat No-Lead - CP-64-6
click to zoom

AD9258BCPZRL7-80 Details

  • Manufacturer Part Number:

    AD9258BCPZRL7-80

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Package Description:

    9 X 9 MM, ROHS COMPLIANT, M0-220VMMD-4, LFCSP-64

  • Pin Count:

    64

  • Manufacturer Package Code:

    CP-64-6

  • Country Of Origin:

    Singapore

  • ECCN Code:

    3A991.C.3

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    2 V

  • Conversion Time-Max:

    0.0125 µs

  • Converter Type:

    ADC, FLASH METHOD

  • JESD-30 Code:

    S-XQCC-N64

  • JESD-609 Code:

    e3

  • Length:

    9 mm

  • Linearity Error-Max (EL):

    0.0067%

  • Moisture Sensitivity Level:

    3

  • Number of Analog In Channels:

    2

  • Number of Bits:

    14

  • Number of Functions:

    1

  • Number of Terminals:

    64

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    OFFSET BINARY, 2S COMPLEMENT BINARY, GRAY CODE

  • Output Format:

    PARALLEL, WORD

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC64,.35SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    80 MHz

  • Sample and Hold / Track and Hold:

    SAMPLE

  • Seated Height-Max:

    1 mm

  • Supply Current-Max:

    240 mA

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    9 mm

AD9258BCPZRL7-80 Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the AD9258BCPZRL7-80 can be found in the AD9258 Evaluation Board documentation, which provides a detailed layout guide and Gerber files for reference. Additionally, Analog Devices provides a PCB layout guide document that provides general guidelines for high-speed ADC layout.
  • To optimize the analog input stage for the AD9258BCPZRL7-80, it is recommended to use a low-noise, high-impedance analog input stage with a bandwidth that matches the ADC's sampling frequency. A differential input stage with a common-mode voltage of around 1.2V to 1.5V is recommended. Additionally, using a low-pass filter or a band-pass filter can help to reduce noise and aliasing.
  • The maximum clock frequency that can be used with the AD9258BCPZRL7-80 is 80 MSPS, as specified in the datasheet. However, it is recommended to use a clock frequency that is within 10% of the maximum specified frequency to ensure optimal performance.
  • The AD9258BCPZRL7-80 has an internal calibration mechanism that can be initiated through the SPI interface. The calibration process involves adjusting the ADC's offset and gain to optimize its performance. The calibration procedure is described in the datasheet and can be performed using the AD9258 Evaluation Board software.
  • The power consumption of the AD9258BCPZRL7-80 depends on the operating conditions, such as the sampling frequency and the supply voltage. According to the datasheet, the typical power consumption is around 330 mW at 80 MSPS and 1.8V supply voltage. However, the actual power consumption may vary depending on the specific application and operating conditions.
