AD9266BCPZRL7-20 - Analog Devices

Description: Analog-to-Digital Converter

Download AD9266BCPZRL7-20 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

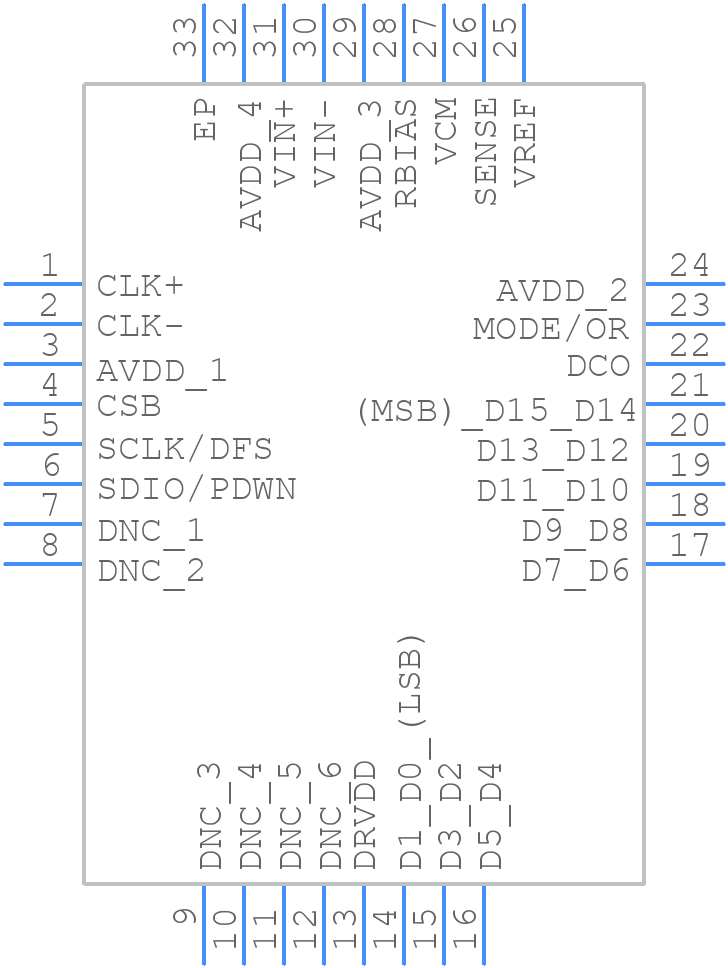

AD9266BCPZRL7-20 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD9266BCPZRL7-20 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - lfcsp-32
click to zoom
3D Models
AD9266BCPZRL7-20 - Analog Devices - 3D model - Quad Flat No-Lead - lfcsp-32
click to zoom

AD9266BCPZRL7-20 Details

  • Manufacturer Part Number:

    AD9266BCPZRL7-20

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Package Description:

    5 X 5 MM, LEAD FREE, MO-220VHHD-2, LFCSP-32

  • Pin Count:

    32

  • Manufacturer Package Code:

    CP-32-12

  • Country Of Origin:

    South Korea

  • ECCN Code:

    3A991.C.4

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    2 V

  • Conversion Time-Max:

    0.05 µs

  • Converter Type:

    ADC, PROPRIETARY METHOD

  • JESD-30 Code:

    S-XQCC-N32

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Linearity Error-Max (EL):

    0.008%

  • Moisture Sensitivity Level:

    3

  • Number of Analog In Channels:

    1

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    OFFSET BINARY, 2S COMPLEMENT BINARY, GRAY CODE

  • Output Format:

    PARALLEL, WORD

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC32,.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    20 MHz

  • Sample and Hold / Track and Hold:

    SAMPLE

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

AD9266BCPZRL7-20 Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the AD9266BCPZRL7-20 can be found in the AD9266 Evaluation Board documentation, which provides a detailed layout guide and Gerber files for reference. Additionally, Analog Devices provides a PCB layout checklist in the AD9266 datasheet that highlights key considerations for signal integrity, power supply decoupling, and thermal management.
  • To optimize the performance of the AD9266BCPZRL7-20, it's essential to carefully consider the analog input signal conditioning, clocking, and power supply design. Analog Devices provides application notes and design tools, such as the AD9266 Evaluation Board and the ADIsimADC simulation tool, to help engineers optimize the ADC's performance in their specific application.
  • The AD9266BCPZRL7-20 is specified to operate up to 20 MSPS, but the actual maximum sampling rate may be limited by the specific application, PCB layout, and clock source. Engineers should consult the datasheet and application notes for guidance on achieving the highest possible sampling rate in their design.
  • The AD9266BCPZRL7-20 requires calibration and configuration to achieve optimal performance. Engineers should consult the datasheet and application notes for guidance on calibration and configuration procedures, including setting the clock, gain, and offset adjustments. Additionally, Analog Devices provides software tools, such as the AD9266 Evaluation Board software, to simplify the calibration and configuration process.
  • The AD9266BCPZRL7-20 is a high-speed ADC that generates heat during operation. Engineers should ensure proper thermal management by providing adequate heat sinking, airflow, and thermal interface materials to maintain the device within its recommended operating temperature range. The datasheet provides thermal resistance and power dissipation data to aid in thermal design.
