AD9268BCPZRL7-125 - Analog Devices

Description: 16 Bit Analog to Digital Converter 2 Input 2 Pipelined 64-LFCSP-VQ (9x9)

Download AD9268BCPZRL7-125 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
AD9268BCPZRL7-125 - Analog Devices - PCB symbol
click to zoom
PCB Footprints

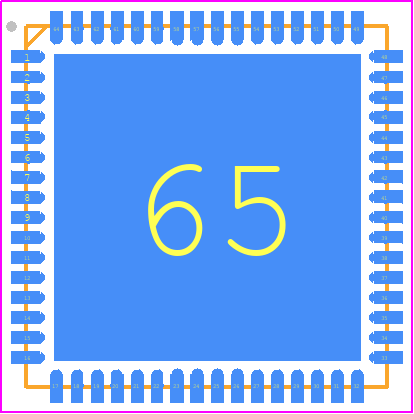

AD9268BCPZRL7-125 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - CP-64-6
click to zoom
3D Models
AD9268BCPZRL7-125 - Analog Devices - 3D model - Quad Flat No-Lead - CP-64-6
click to zoom

AD9268BCPZRL7-125 Details

  • Manufacturer Part Number:

    AD9268BCPZRL7-125

  • Source Url Status Check Date:

    2013-05-01 14:56:30.482

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Package Description:

    9 X 9 MM, ROHS COMPLIANT, M0-220VMMD-4, LFCSP-64

  • Pin Count:

    64

  • Manufacturer Package Code:

    CP-64-6

  • Country Of Origin:

    Singapore

  • ECCN Code:

    3A001.A.5.A.5

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    2 V

  • Conversion Time-Max:

    0.008 µs

  • Converter Type:

    ADC, FLASH METHOD

  • JESD-30 Code:

    S-XQCC-N64

  • JESD-609 Code:

    e3

  • Length:

    9 mm

  • Linearity Error-Max (EL):

    0.0084%

  • Moisture Sensitivity Level:

    3

  • Number of Analog In Channels:

    2

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    64

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    OFFSET BINARY, 2S COMPLEMENT BINARY, GRAY CODE

  • Output Format:

    PARALLEL, WORD

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC64,.35SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    125 MHz

  • Sample and Hold / Track and Hold:

    SAMPLE

  • Seated Height-Max:

    1 mm

  • Supply Current-Max:

    400 mA

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    9 mm

AD9268BCPZRL7-125 Frequently Asked Questions (FAQs)

  • A good PCB layout for the AD9268BCPZRL7-125 involves separating analog and digital grounds, using a solid ground plane, and keeping sensitive analog signals away from digital signals. Additionally, using a 4-layer PCB with a dedicated power plane and a dedicated ground plane can help to reduce noise and improve performance.
  • To optimize the clock input to the AD9268BCPZRL7-125, use a low-jitter clock source, such as a crystal oscillator or a high-quality clock generator. Ensure the clock signal is properly terminated and routed to minimize reflections and noise. Additionally, use a clock frequency that is within the recommended range of 125 MHz to 250 MHz.
  • The recommended power-up sequence for the AD9268BCPZRL7-125 is to first apply the analog power supply (AVDD), followed by the digital power supply (DVDD), and finally the clock signal. This sequence helps to prevent damage or malfunction due to incorrect power-up sequencing.
  • To properly terminate the analog input signals to the AD9268BCPZRL7-125, use a 50-ohm termination resistor in series with the input signal, and a 100-nF capacitor to ground to filter out high-frequency noise. Additionally, use a low-capacitance cable or PCB trace to minimize signal degradation.
  • The recommended method for calibrating the AD9268BCPZRL7-125 involves using the device's built-in calibration mode, which adjusts the internal gain and offset to optimize performance. Additionally, users can perform external calibration using an external calibration signal and adjusting the device's gain and offset accordingly.
