AD9283BRSZ-50 - Analog Devices

Description: 8 Bit Analog to Digital Converter 1 Input 1 Pipelined 20-SSOP -40°C ~ 85°C,2.7V ~ 3.6V

Download AD9283BRSZ-50 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

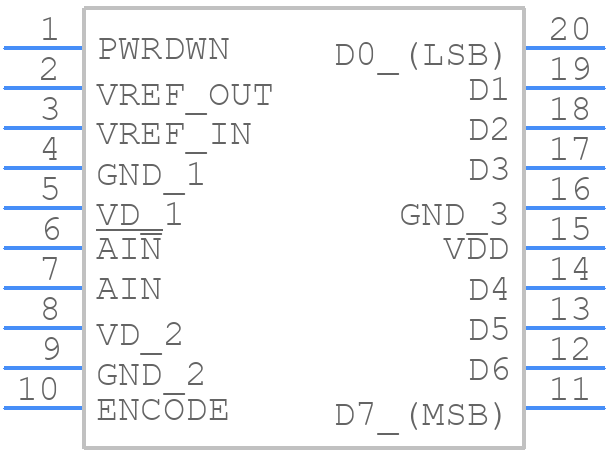

Symbol
AD9283BRSZ-50 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD9283BRSZ-50 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - SSOP-1
click to zoom
3D Models
AD9283BRSZ-50 - Analog Devices - 3D model - Small Outline Packages - SSOP-1
click to zoom

AD9283BRSZ-50 Details

  • Manufacturer Part Number:

    AD9283BRSZ-50

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SSOP

  • Package Description:

    PLASTIC, SSOP-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    RS-20

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    0.512 V

  • Analog Input Voltage-Min:

    -0.512 V

  • Converter Type:

    ADC, PROPRIETARY METHOD

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e3

  • Length:

    7.2 mm

  • Linearity Error-Max (EL):

    0.5859%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    1

  • Number of Bits:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    OFFSET BINARY

  • Output Format:

    PARALLEL, 8 BITS

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP20,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    50 MHz

  • Sample and Hold / Track and Hold:

    TRACK

  • Seated Height-Max:

    2 mm

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    5.3 mm

AD9283BRSZ-50 Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate analog ground plane is recommended. Keep the analog and digital grounds separate and connect them at a single point. Use a star topology for the power supply connections and keep the signal traces short and away from the digital lines.
  • Use a high-quality clock source with a low jitter (<100 ps) and a frequency of 10 MHz to 100 MHz. Use a clock buffer or a clock generator with a low jitter output. Ensure the clock signal is properly terminated and use a shielded cable to connect the clock source to the AD9283BRSZ-50.
  • Power up the analog supply (AVDD) first, followed by the digital supply (DVDD). Ensure that the analog supply is stable before applying the digital supply. Use a power-up sequence controller or a power management IC to ensure a controlled power-up sequence.
  • Use a heat sink or a thermal pad to dissipate heat from the device. Ensure good airflow around the device and avoid blocking the airflow. Use a temperature sensor to monitor the device temperature and take corrective action if the temperature exceeds the specified range.
  • Use a logic analyzer or an oscilloscope to monitor the digital outputs and verify the data integrity. Use a signal generator to test the analog input and verify the ADC's performance. Use a debugging tool or a software development kit (SDK) provided by Analog Devices to test and debug the device.
