AD9432BSTZ-80 Frequently Asked Questions (FAQs)

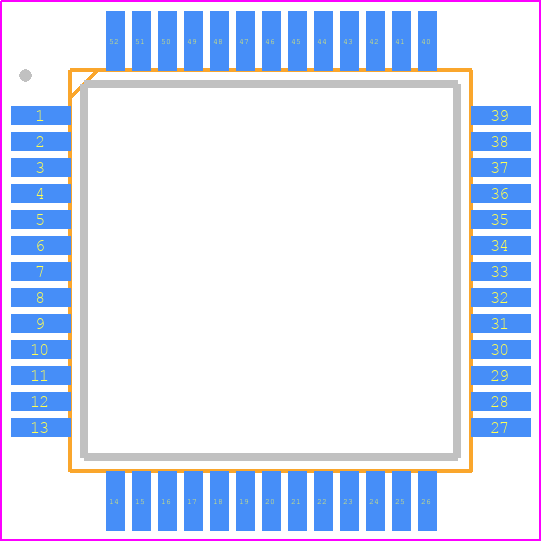

• What is the recommended PCB layout for the AD9432BSTZ-80 to minimize noise and ensure optimal performance?
  A 4-layer PCB with a solid ground plane and a separate analog ground plane is recommended. Keep the analog and digital grounds separate and connect them at a single point. Use a star topology for the power supply connections and keep the signal traces short and away from the digital lines.
• How do I optimize the clock input for the AD9432BSTZ-80 to achieve the best possible jitter performance?
  Use a low-jitter clock source (<100 ps RMS) and ensure the clock signal is properly terminated. Use a clock signal with a 50% duty cycle and a frequency that is an integer multiple of the sampling frequency. Also, use a clock signal with a fast rise and fall time (<1 ns) to minimize jitter.
• What is the recommended power-up sequence for the AD9432BSTZ-80 to prevent latch-up and ensure reliable operation?
  Power up the analog supply (AVDD) first, followed by the digital supply (DVDD), and then the clock signal. Ensure that the clock signal is stable before applying the analog input signal.
• How do I handle the output data from the AD9432BSTZ-80 to ensure data integrity and minimize errors?
  Use a FIFO or a buffer to handle the output data, and ensure that the data is clocked out of the FIFO or buffer at a rate that is at least twice the sampling frequency. Use a CRC or checksum to detect errors and ensure data integrity.
• What is the recommended calibration procedure for the AD9432BSTZ-80 to ensure optimal performance and accuracy?
  Perform a full-scale calibration by applying a full-scale input signal and adjusting the offset and gain to achieve the desired performance. Perform a linearity calibration by applying a series of input signals and adjusting the internal calibration registers to achieve optimal linearity.
