AD9628BCPZ-125 - Analog Devices

Description: Analog Devices AD9628BCPZ-125, 12 bit Serial ADC, Dual Differential Input, 64-Pin LFCSP

Download AD9628BCPZ-125 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
AD9628BCPZ-125 - Analog Devices - PCB symbol
click to zoom
PCB Footprints

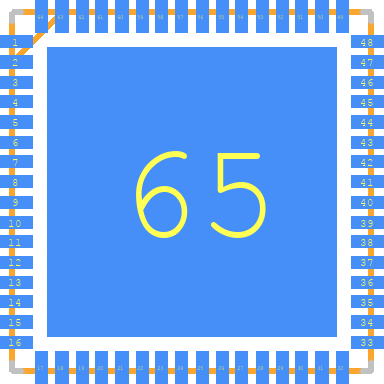

AD9628BCPZ-125 - Analog Devices PCB footprint - Other - Other - QFN50P900X900X100-65N
click to zoom
3D Models
AD9628BCPZ-125 - Analog Devices - 3D model - Other - QFN50P900X900X100-65N
click to zoom

AD9628BCPZ-125 Details

  • Manufacturer Part Number:

    AD9628BCPZ-125

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Package Description:

    9 X 9 MM, ROHS COMPLIANT, MO-220VMMD-4, LFCSP-64

  • Pin Count:

    64

  • Manufacturer Package Code:

    CP-64-4

  • Country Of Origin:

    Singapore

  • ECCN Code:

    3A991.C.2

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    2 V

  • Analog Input Voltage-Min:

    -2 V

  • Conversion Time-Max:

    0.008 µs

  • Converter Type:

    ADC, FLASH METHOD

  • JESD-30 Code:

    S-XQCC-N64

  • JESD-609 Code:

    e3

  • Length:

    9 mm

  • Linearity Error-Max (EL):

    0.0183%

  • Moisture Sensitivity Level:

    3

  • Number of Analog In Channels:

    2

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    64

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    OFFSET BINARY, 2S COMPLEMENT BINARY, GRAY CODE

  • Output Format:

    SERIAL

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC64,.35SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    125 MHz

  • Sample and Hold / Track and Hold:

    SAMPLE

  • Seated Height-Max:

    1 mm

  • Supply Current-Max:

    98 mA

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    9 mm

AD9628BCPZ-125 Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate analog and digital power plane is recommended. Keep the analog and digital signals separate and avoid crossing them over each other. Use a common mode filter or a pi-filter to reduce noise and EMI.
  • Use a low-jitter clock source (<100 ps) and ensure the clock signal is properly terminated. Use a clock signal with a frequency that is an integer multiple of the sampling frequency to minimize jitter. Also, ensure the clock signal is clean and free of noise.
  • Power up the analog supply (AVDD) first, followed by the digital supply (DVDD), and then the clock signal. This ensures that the analog circuitry is powered up before the digital circuitry, which helps to prevent latch-up and ensures proper operation.
  • The AD9628BCPZ-125 outputs 12-bit data in a DDR (Double Data Rate) format. The recommended data processing flow is to first deserialize the DDR data, then apply digital filtering to remove noise and artifacts, followed by data formatting and processing according to the specific application requirements.
  • The maximum allowable input signal amplitude for the AD9628BCPZ-125 is 1.5 Vpp differential. Ensure that the input signal is within the allowable range by using an anti-aliasing filter and an input attenuator or amplifier as needed. Also, ensure that the input signal is properly terminated and matched to the ADC input impedance.
