AD9629BCPZRL7-65 - Analog Devices

Description: 1.8 V Analog-to-Digital Converter

Download AD9629BCPZRL7-65 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

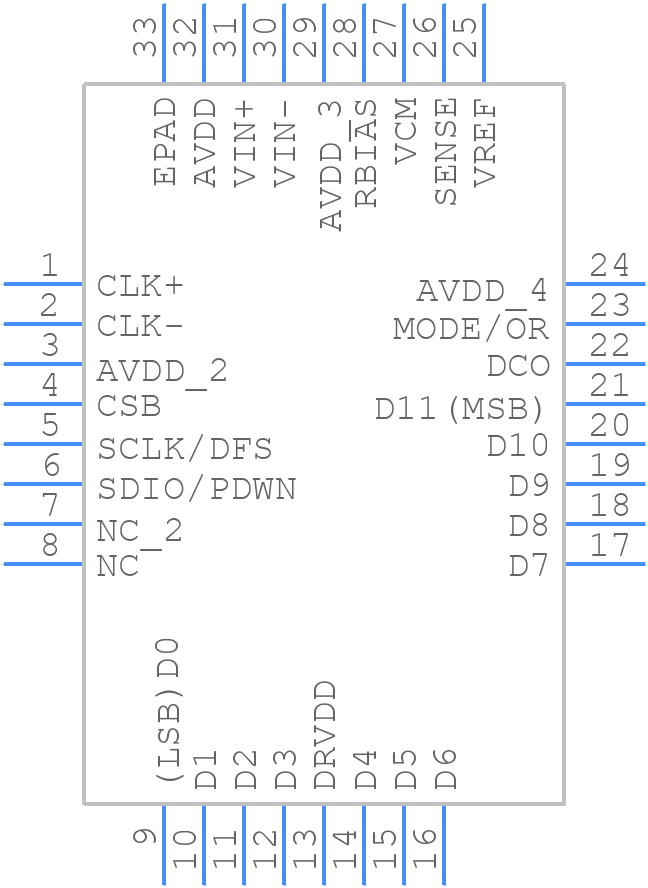

AD9629BCPZRL7-65 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD9629BCPZRL7-65 - Analog Devices PCB footprint - Other - Other - QFN50P500X500X100-33N
click to zoom
3D Models
AD9629BCPZRL7-65 - Analog Devices - 3D model - Other - QFN50P500X500X100-33N
click to zoom

AD9629BCPZRL7-65 Details

  • Manufacturer Part Number:

    AD9629BCPZRL7-65

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Package Description:

    LFCSP-32

  • Pin Count:

    32

  • Manufacturer Package Code:

    CP-32-11

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    2 V

  • Conversion Time-Max:

    0.0153 µs

  • Converter Type:

    ADC, FLASH METHOD

  • JESD-30 Code:

    S-XQCC-N32

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Linearity Error-Max (EL):

    0.0073%

  • Moisture Sensitivity Level:

    3

  • Number of Analog In Channels:

    1

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    OFFSET BINARY, 2S COMPLEMENT BINARY, GRAY CODE

  • Output Format:

    PARALLEL, WORD

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC32,.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    65 MHz

  • Sample and Hold / Track and Hold:

    SAMPLE

  • Seated Height-Max:

    1 mm

  • Supply Current-Max:

    1.8 mA

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

AD9629BCPZRL7-65 Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the AD9629BCPZRL7-65 can be found in the AD9629 Evaluation Board documentation, which provides a detailed layout guide and Gerber files for reference. Additionally, Analog Devices provides a PCB layout checklist in the AD9629 datasheet that highlights key considerations for signal integrity, power supply decoupling, and thermal management.
  • To optimize the performance of the AD9629BCPZRL7-65, it's essential to carefully consider the analog input signal chain, including the signal source, amplifiers, and filters. Additionally, proper power supply decoupling, clock signal quality, and digital output termination are critical. Analog Devices provides application notes and design tools, such as the AD9629 Evaluation Board and the Analog Devices JESD204B IP Core, to help optimize performance in specific applications.
  • The AD9629BCPZRL7-65 is specified to operate over a temperature range of -40°C to 85°C. However, it's essential to note that the device's performance may degrade at higher temperatures, and thermal management is critical to ensure reliable operation. The datasheet provides detailed information on the device's thermal characteristics and recommended operating conditions.
  • To troubleshoot issues with the AD9629BCPZRL7-65, start by reviewing the datasheet and application notes to ensure that the device is properly configured and operated within its specified limits. Use tools such as oscilloscopes and logic analyzers to debug the analog input signal chain, clock signal quality, and digital output data. Analog Devices also provides technical support and resources, such as the EngineerZone forum, to help troubleshoot and resolve issues.
  • The AD9629BCPZRL7-65 is not specifically designed or tested for radiation tolerance. However, Analog Devices provides radiation-tolerant versions of some of its products, such as the AD9629-RT, which are designed for use in harsh radiation environments. If radiation tolerance is a requirement, it's essential to consult with Analog Devices or a qualified radiation effects expert to determine the suitability of the AD9629BCPZRL7-65 or alternative products for the specific application.
