AD9633BCPZ-80 - Analog Devices

Description: 125 MSPS, Serial LVDS 1.8 V ADC

Download AD9633BCPZ-80 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

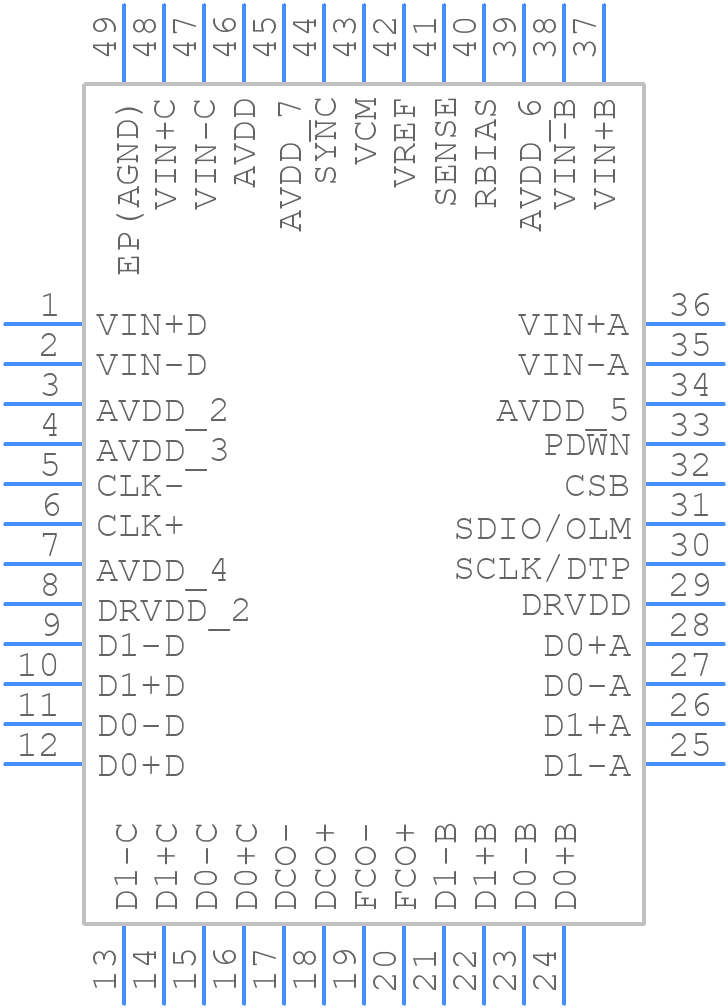

Symbol
AD9633BCPZ-80 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD9633BCPZ-80 - Analog Devices PCB footprint - Other - Other - QFN50P700X700X80-49N
click to zoom
3D Models
AD9633BCPZ-80 - Analog Devices - 3D model - Other - QFN50P700X700X80-49N
click to zoom

AD9633BCPZ-80 Details

  • Manufacturer Part Number:

    AD9633BCPZ-80

  • Source Url Status Check Date:

    2013-05-01 14:56:31.349

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Package Description:

    LFCSP-48

  • Pin Count:

    48

  • Manufacturer Package Code:

    CP-48-13

  • Country Of Origin:

    South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    2 V

  • Analog Input Voltage-Min:

    -2 V

  • Conversion Time-Max:

    0.0125 µs

  • Converter Type:

    ADC, FLASH METHOD

  • JESD-30 Code:

    S-XQCC-N48

  • JESD-609 Code:

    e3

  • Length:

    7 mm

  • Linearity Error-Max (EL):

    0.0391%

  • Moisture Sensitivity Level:

    3

  • Number of Analog In Channels:

    4

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    OFFSET BINARY, 2'S COMPLEMENT BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC48,.27SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    80 MHz

  • Sample and Hold / Track and Hold:

    SAMPLE

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7 mm

AD9633BCPZ-80 Frequently Asked Questions (FAQs)

  • A good PCB layout for the AD9633BCPZ-80 involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To optimize the AD9633BCPZ-80's performance for high-frequency applications, it's recommended to use a low-jitter clock source, minimize the length of the input traces, and use a high-frequency capable PCB material. Additionally, the device's internal clock buffer can be disabled to reduce jitter and improve performance.
  • The recommended power-up sequence for the AD9633BCPZ-80 is to first apply the analog power supply (AVDD), followed by the digital power supply (DVDD), and finally the clock signal. This sequence helps prevent damage or malfunction due to incorrect power-up sequencing.
  • To troubleshoot issues with the AD9633BCPZ-80's analog-to-digital conversion, check the input signal integrity, ensure proper PCB layout and grounding, and verify the clock signal quality. Additionally, use the device's built-in diagnostic features, such as the output data format and the overrange indicator, to help identify the source of the issue.
  • The recommended method for thermal management of the AD9633BCPZ-80 involves using a heat sink or a thermal pad on the device's exposed pad, and ensuring good airflow around the device. Additionally, reducing the device's power consumption by optimizing the clock frequency and using the device's power-down modes can also help reduce thermal issues.

Trust Checks

This model has been verified by system checks.
System Verified
Sponsored

AD9633BCPZ-80 Overview

Use the download button to access the AD9633BCPZ-80 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD963, or try a keyword search, such as Analog to Digital Converters

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
