AD9639BCPZ-210 - Analog Devices

Description: ADC

Download AD9639BCPZ-210 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
AD9639BCPZ-210 - Analog Devices - PCB symbol
click to zoom
PCB Footprints

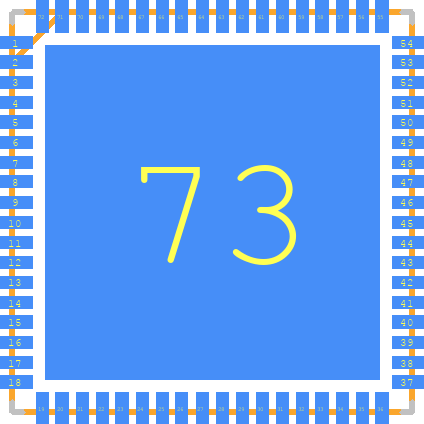

AD9639BCPZ-210 - Analog Devices PCB footprint - Other - Other - QFN50P1000X1000X100-73N
click to zoom
3D Models
AD9639BCPZ-210 - Analog Devices - 3D model - Other - QFN50P1000X1000X100-73N
click to zoom

AD9639BCPZ-210 Details

  • Manufacturer Part Number:

    AD9639BCPZ-210

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Pin Count:

    72

  • Manufacturer Package Code:

    CP-72-3

  • Country Of Origin:

    Singapore

  • ECCN Code:

    3A991.C.2

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    1.5 V

  • Analog Input Voltage-Min:

    1 V

  • Converter Type:

    ADC, FLASH METHOD

  • JESD-30 Code:

    S-XQCC-N72

  • JESD-609 Code:

    e3

  • Length:

    10 mm

  • Linearity Error-Max (EL):

    0.0317%

  • Moisture Sensitivity Level:

    3

  • Number of Analog In Channels:

    4

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    72

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    OFFSET BINARY, 2'S COMPLEMENT BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC72,.39SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    210 MHz

  • Sample and Hold / Track and Hold:

    SAMPLE

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    10 mm

AD9639BCPZ-210 Frequently Asked Questions (FAQs)

  • A good PCB layout is crucial for the AD9639's performance. Analog Devices recommends a 4-layer PCB with a solid ground plane, and to keep the analog and digital signals separate. The datasheet provides some general guidelines, but a more detailed application note (AN-1142) is available on the Analog Devices website, which provides specific layout recommendations.
  • Proper power supply decoupling is essential for the AD9639's performance. Analog Devices recommends using a combination of ceramic and electrolytic capacitors to decouple the power supply pins. A 0.1 μF ceramic capacitor should be placed as close as possible to the power pin, and a 10 μF electrolytic capacitor should be placed further away. The datasheet provides more details on the recommended decoupling scheme.
  • The AD9639 can handle clock frequencies up to 210 MSPS, but the maximum clock frequency may vary depending on the specific application and the quality of the clock signal. It's recommended to consult the datasheet and the application notes for more information on clocking the AD9639.
  • The AD9639's registers can be programmed using a serial interface, such as SPI or I2C. The datasheet provides a detailed description of the register map and the programming sequence. Additionally, Analog Devices provides a software development kit (SDK) that includes example code and a GUI-based tool for programming the AD9639.
  • The typical power consumption of the AD9639 varies depending on the operating mode and the clock frequency. According to the datasheet, the typical power consumption is around 350 mW at 210 MSPS, but this can vary depending on the specific application. It's recommended to consult the datasheet and the application notes for more information on power consumption.
