AD9680BCPZ-1000 - Analog Devices

Description: 14-Bit, 1.25 GSPS/1 GSPS/820 MSPS/500 MSPS JESD204B, Dual Analog-to-Digital Converter

Download AD9680BCPZ-1000 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
AD9680BCPZ-1000 - Analog Devices - PCB symbol
click to zoom
PCB Footprints

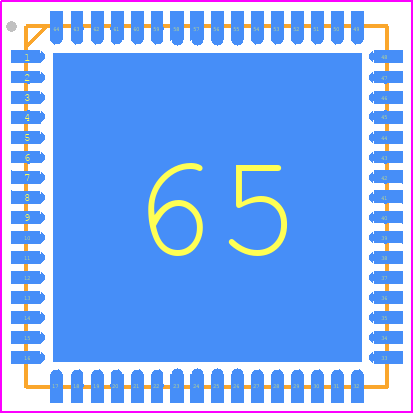

AD9680BCPZ-1000 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - (CP-64-15)_2021
click to zoom
3D Models
AD9680BCPZ-1000 - Analog Devices - 3D model - Quad Flat No-Lead - (CP-64-15)_2021
click to zoom

AD9680BCPZ-1000 Details

  • Manufacturer Part Number:

    AD9680BCPZ-1000

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    CSP

  • Package Description:

    LFCSP-64

  • Pin Count:

    64

  • Manufacturer Package Code:

    CP-64-15

  • Country Of Origin:

    Philippines

  • ECCN Code:

    3A001.A.5.A.4

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    1.7 V

  • Analog Input Voltage-Min:

    -1.7 V

  • Converter Type:

    ADC, PROPRIETARY METHOD

  • JESD-30 Code:

    S-XQCC-N64

  • JESD-609 Code:

    e3

  • Length:

    9 mm

  • Linearity Error-Max (EL):

    0.0421%

  • Moisture Sensitivity Level:

    3

  • Number of Analog In Channels:

    2

  • Number of Bits:

    14

  • Number of Functions:

    1

  • Number of Terminals:

    64

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    OFFSET BINARY, 2S COMPLEMENT BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC64,.35SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Sample Rate:

    1000 MHz

  • Sample and Hold / Track and Hold:

    SAMPLE

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max:

    720 mA

  • Supply Voltage-Nom:

    1.25 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    9 mm

AD9680BCPZ-1000 Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate analog and digital power plane is recommended. Keep the analog and digital signals separate and avoid crossing them over each other. Use a common mode filter and a low-pass filter to reduce noise and ensure signal integrity.
  • Use a low-jitter clock source (<100 ps) and ensure that the clock signal is properly terminated. Use a clock buffer or a clock distribution network to ensure that the clock signal is clean and stable. Also, ensure that the clock frequency is within the recommended range (100 MHz to 1.25 GHz).
  • Power up the device in the following sequence: AVDD, DVDD, and then CLK+. Ensure that the power supplies are stable and within the recommended voltage range before applying the clock signal. Also, ensure that the device is in a known state (e.g., reset) before applying the clock signal.
  • Use a low-noise, low-impedance signal source and ensure that the signal is properly terminated. Use a high-quality, low-loss transmission line or a shielded cable to connect the signal source to the AD9680BCPZ-1000. Also, ensure that the signal amplitude is within the recommended range (0.5 V to 1.5 V) and that the signal bandwidth is within the Nyquist bandwidth of the ADC.
  • Perform a full-scale calibration after power-up and after any changes to the clock frequency or analog input signal. Use the built-in calibration engine to adjust the ADC's offset, gain, and linearity. Also, perform a periodic calibration to compensate for any drift or changes in the device's performance over time.
