AD9680BCPZRL7-820 - Analog Devices

Description: 14-Bit, 1.25 GSPS/1 GSPS/820 MSPS/500 MSPS JESD204B, Dual Analog-to-Digital Converter

Download AD9680BCPZRL7-820 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
AD9680BCPZRL7-820 - Analog Devices - PCB symbol
click to zoom
PCB Footprints

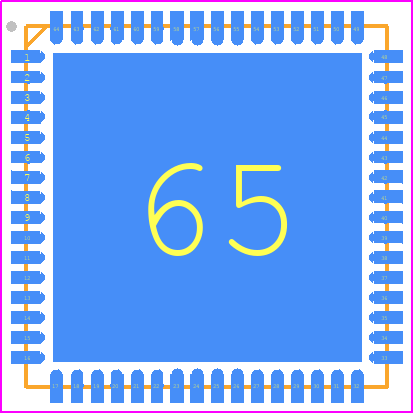

AD9680BCPZRL7-820 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - CP-64-15 (LFCSP_WQ)
click to zoom
3D Models
AD9680BCPZRL7-820 - Analog Devices - 3D model - Quad Flat No-Lead - CP-64-15 (LFCSP_WQ)
click to zoom

AD9680BCPZRL7-820 Details

  • Manufacturer Part Number:

    AD9680BCPZRL7-820

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LFCSP-64

  • Pin Count:

    64

  • Manufacturer Package Code:

    CP-64-15

  • Country Of Origin:

    Philippines

  • ECCN Code:

    3A001.A.5.A.4

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    1.7 V

  • Analog Input Voltage-Min:

    -1.7 V

  • Converter Type:

    ADC, PROPRIETARY METHOD

  • JESD-30 Code:

    S-XQCC-N64

  • JESD-609 Code:

    e3

  • Length:

    9 mm

  • Linearity Error-Max (EL):

    0.0262%

  • Moisture Sensitivity Level:

    3

  • Number of Analog In Channels:

    2

  • Number of Bits:

    14

  • Number of Functions:

    1

  • Number of Terminals:

    64

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    OFFSET BINARY, 2S COMPLEMENT BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC64,.35SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Sample Rate:

    820 MHz

  • Sample and Hold / Track and Hold:

    SAMPLE

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max:

    660 mA

  • Supply Voltage-Nom:

    1.25 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    9 mm

AD9680BCPZRL7-820 Frequently Asked Questions (FAQs)

  • Analog Devices provides a recommended PCB layout and routing guide in the AD9680 Evaluation Board documentation, which can be found on the product page. It's essential to follow these guidelines to ensure optimal performance and minimize noise coupling.
  • The AD9680's analog input stage can be optimized by selecting the appropriate input termination, gain, and bandwidth settings. Analog Devices provides an Analog Input Stage Optimization Tool on their website, which can help engineers determine the optimal settings for their specific application.
  • The AD9680 can support clock frequencies up to 2.5 GHz, but the maximum frequency depends on the specific application and the quality of the clock signal. It's recommended to consult the datasheet and application notes for more information on clocking and synchronization.
  • Proper synchronization and alignment of the AD9680's multiple channels can be achieved by using the device's built-in synchronization features, such as the SYNC_IN and SYNC_OUT pins. Analog Devices provides application notes and documentation on how to use these features to ensure proper synchronization and alignment.
  • The typical power consumption of the AD9680 varies depending on the specific configuration and operating conditions. Analog Devices provides power consumption estimates in the datasheet, and engineers can optimize power consumption by using power-down modes, adjusting the clock frequency, and selecting the appropriate power supply voltage.
