AD9683BCPZ-170 - Analog Devices

Description: Analog Devices AD9683BCPZ-170, 14 bit Serial ADC, Differential Input, 32-Pin LFCSP

Download AD9683BCPZ-170 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

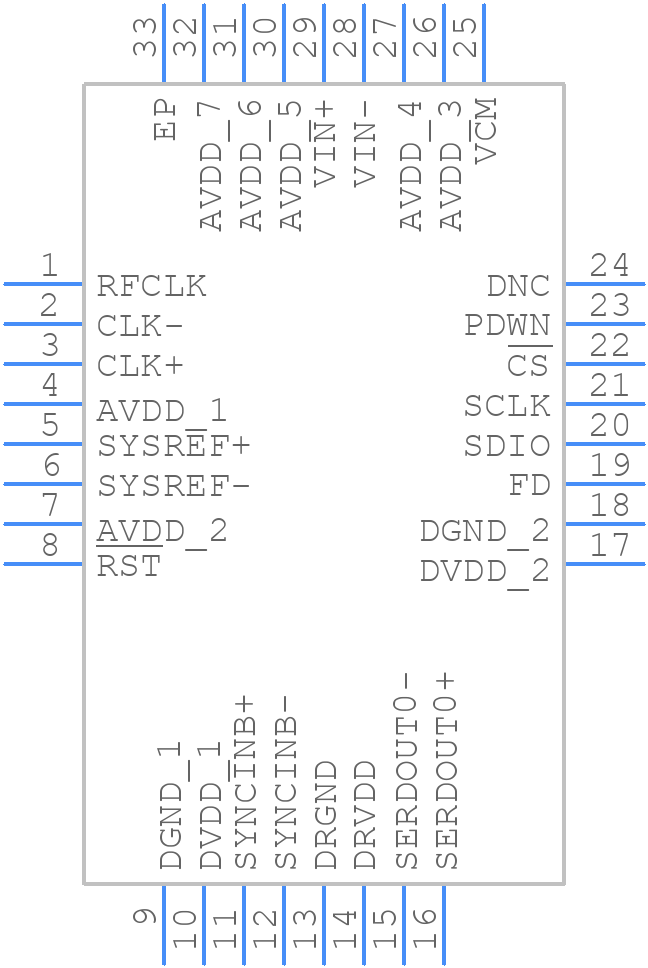

AD9683BCPZ-170 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD9683BCPZ-170 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - CP-32-12
click to zoom
3D Models
AD9683BCPZ-170 - Analog Devices - 3D model - Quad Flat No-Lead - CP-32-12
click to zoom

AD9683BCPZ-170 Details

  • Manufacturer Part Number:

    AD9683BCPZ-170

  • Source Url Status Check Date:

    2013-05-01 14:56:31.583

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    5 X 5 MM, ROHS COMPLIANT, MO-220WHHD-5, LFCSP-32

  • Pin Count:

    32

  • Manufacturer Package Code:

    CP-32-12

  • Country Of Origin:

    South Korea

  • ECCN Code:

    3A991.C.3

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    1.75 V

  • Analog Input Voltage-Min:

    -1.75 V

  • Conversion Time-Max:

    0.025 µs

  • Converter Type:

    ADC, PROPRIETARY METHOD

  • JESD-30 Code:

    S-XQCC-N32

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Linearity Error-Max (EL):

    0.0098%

  • Moisture Sensitivity Level:

    3

  • Number of Analog In Channels:

    1

  • Number of Bits:

    14

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    2S COMPLEMENT BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC32,.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    170 MHz

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

AD9683BCPZ-170 Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep analog and digital signals separate, and use shielding and filtering to minimize noise. Refer to the AD9683BCPZ-170 evaluation board design files for a reference layout.
  • Use a common clock source for all channels, and ensure that the clock signal is clean and jitter-free. Use the device's internal clock divider to generate the necessary clock frequencies. For multi-channel applications, use a single clock source and distribute it to each channel using a clock buffer or repeater.
  • Power up the device in the following sequence: AVDD, DVDD, and then CLK+. Ensure that the power supplies are stable and within the recommended voltage range before applying the clock signal.
  • Perform a full-scale calibration by applying a full-scale input signal and adjusting the offset and gain registers to achieve optimal performance. Refer to the device's calibration procedure in the datasheet for more information.
  • Use a heat sink or thermal pad to dissipate heat from the device. Ensure good airflow around the device, and avoid blocking the airflow with nearby components. Monitor the device's temperature using the internal temperature sensor and adjust the system design accordingly.
