AD9683BCPZRL7-170 - Analog Devices

Description: 14-Bit, 170 MSPS/250 MSPS, JESD204B, Analog-to-Digital Converter

Download AD9683BCPZRL7-170 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

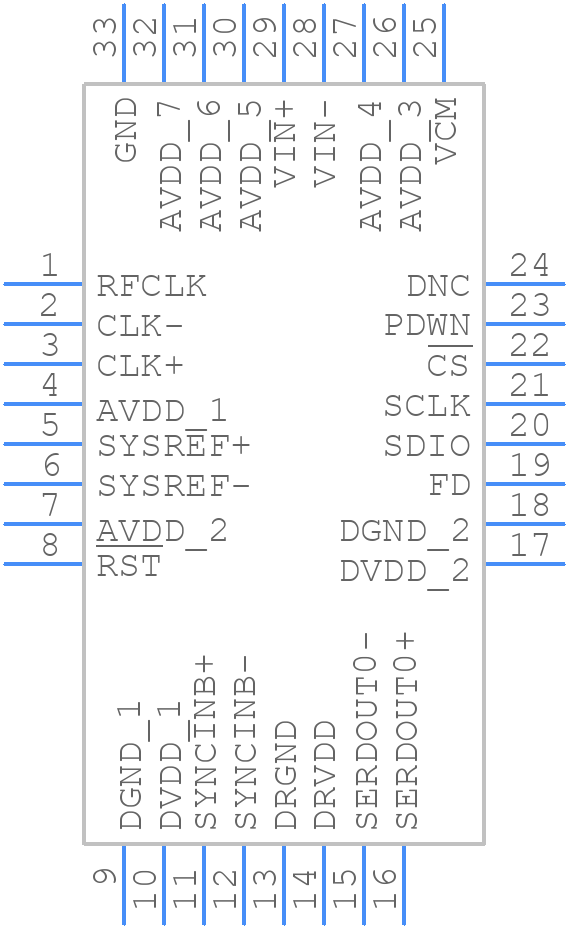

Symbol
AD9683BCPZRL7-170 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD9683BCPZRL7-170 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - (CP-32-12)
click to zoom
3D Models
AD9683BCPZRL7-170 - Analog Devices - 3D model - Quad Flat No-Lead - (CP-32-12)
click to zoom

AD9683BCPZRL7-170 Details

  • Manufacturer Part Number:

    AD9683BCPZRL7-170

  • Source Url Status Check Date:

    2013-05-01 14:56:31.585

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    5 X 5 MM, ROHS COMPLIANT, MO-220WHHD-5, LFCSP-32

  • Pin Count:

    32

  • Manufacturer Package Code:

    CP-32-12

  • Country Of Origin:

    South Korea

  • ECCN Code:

    3A991.C.3

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    1.75 V

  • Analog Input Voltage-Min:

    -1.75 V

  • Conversion Time-Max:

    0.025 µs

  • Converter Type:

    ADC, PROPRIETARY METHOD

  • JESD-30 Code:

    S-XQCC-N32

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Linearity Error-Max (EL):

    0.0098%

  • Moisture Sensitivity Level:

    3

  • Number of Analog In Channels:

    1

  • Number of Bits:

    14

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    2S COMPLEMENT BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC32,.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    170 MHz

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

AD9683BCPZRL7-170 Frequently Asked Questions (FAQs)

  • A good PCB layout is crucial for the AD9683's performance. Analog Devices recommends a 4-layer PCB with a solid ground plane, and to keep the analog and digital signals separate. The device's exposed pad should be connected to a solid ground plane to reduce thermal resistance and improve heat dissipation.
  • The AD9683 requires a low-jitter clock source. A recommended clocking scheme is to use a low-jitter clock source, such as a crystal oscillator, and to use a clock buffer to distribute the clock signal to the AD9683. The clock signal should be routed close to the device and away from noisy digital signals.
  • A good power supply decoupling scheme is essential for the AD9683's performance. Analog Devices recommends using a combination of ceramic and electrolytic capacitors to decouple the power supplies. A 0.1uF ceramic capacitor should be placed close to the device's power pins, and a 10uF electrolytic capacitor should be placed near the power supply source.
  • The AD9683's digital output can be interfaced with an FPGA using a parallel bus interface. The FPGA should be configured to capture the data on the rising edge of the clock signal. The AD9683's output data format can be configured to match the FPGA's input data format. Additionally, the FPGA's input buffers should be configured to match the AD9683's output drive strength.
  • The AD9683 is specified to operate over a temperature range of -40°C to 85°C. However, the device's performance may degrade at higher temperatures. It is recommended to operate the device within a temperature range of 0°C to 70°C for optimal performance.
