AD9826KRS - Analog Devices

Description: IC IMAGE SGNL PROC 16BIT 28-SSOP

Download AD9826KRS Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

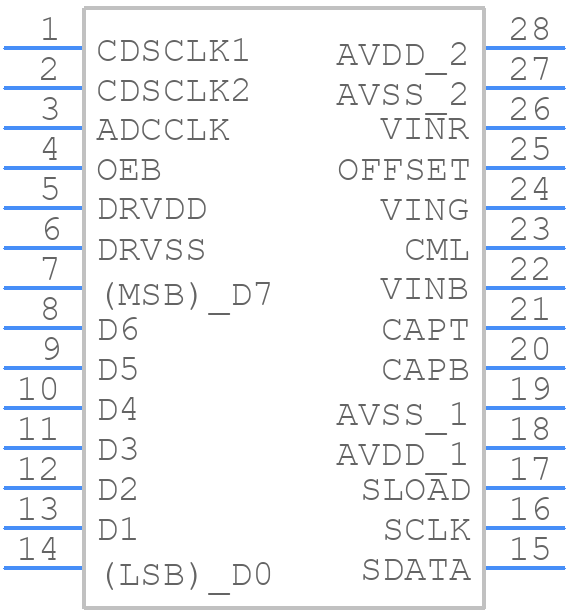

AD9826KRS - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD9826KRS - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 28-Lead Shrink Small Outline Package [SSOP]
click to zoom
3D Models
AD9826KRS - Analog Devices - 3D model - Small Outline Packages - 28-Lead Shrink Small Outline Package [SSOP]
click to zoom

AD9826KRS Details

  • Manufacturer Part Number:

    AD9826KRS

  • Pbfree Code:

    No

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SSOP

  • Package Description:

    SSOP-28

  • Pin Count:

    28

  • ECCN Code:

    3A991.c.4

  • HTS Code:

    8542.39.00.30

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Analog Input Voltage-Max:

    4 V

  • Analog Input Voltage-Min:

    -4 V

  • Conversion Time-Max:

    0.03 µs

  • Converter Type:

    DATA ACQUISITION DEVICE

  • JESD-30 Code:

    R-PDSO-G28

  • Length:

    10.2 mm

  • Linearity Error-Max (EL):

    0.0244%

  • Number of Analog In Channels:

    3

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP28,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Sample Rate:

    15 MHz

  • Seated Height-Max:

    2 mm

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    5.3 mm

AD9826KRS Frequently Asked Questions (FAQs)

  • The AD9826KRS requires careful layout and routing to minimize noise and ensure optimal performance. Analog Devices recommends following a star-grounding scheme, using separate analog and digital grounds, and keeping the analog signal paths short and shielded. Additionally, the device's exposed paddle should be connected to a solid ground plane to reduce thermal resistance.
  • To optimize power supply decoupling, use a combination of ceramic and electrolytic capacitors with different values and placement strategies. Place a 100 nF ceramic capacitor close to the device's power pins, and use a larger electrolytic capacitor (e.g., 10 μF) farther away from the device. Ensure that the capacitors are connected to a solid ground plane and that the power supply lines are routed away from sensitive analog signals.
  • The AD9826KRS supports clock frequencies up to 65 MHz. However, the actual maximum clock frequency may be limited by the specific application, PCB layout, and signal integrity. It's essential to consult the datasheet and perform thorough signal integrity analysis to ensure reliable operation at higher clock frequencies.
  • The AD9826KRS offers flexible output formatting options, including 2's complement, offset binary, and Gray code. Data alignment can be configured using the device's control registers. Consult the datasheet and the device's programming guide for specific details on configuring the output format and data alignment for your application.
  • To synchronize multiple AD9826KRS devices, use a common clock source and ensure that the clock signals are properly buffered and distributed to each device. You can also use the device's SYNC input to synchronize the converters. Consult the datasheet and application notes for more information on synchronizing multiple AD9826KRS devices.
