Symbol

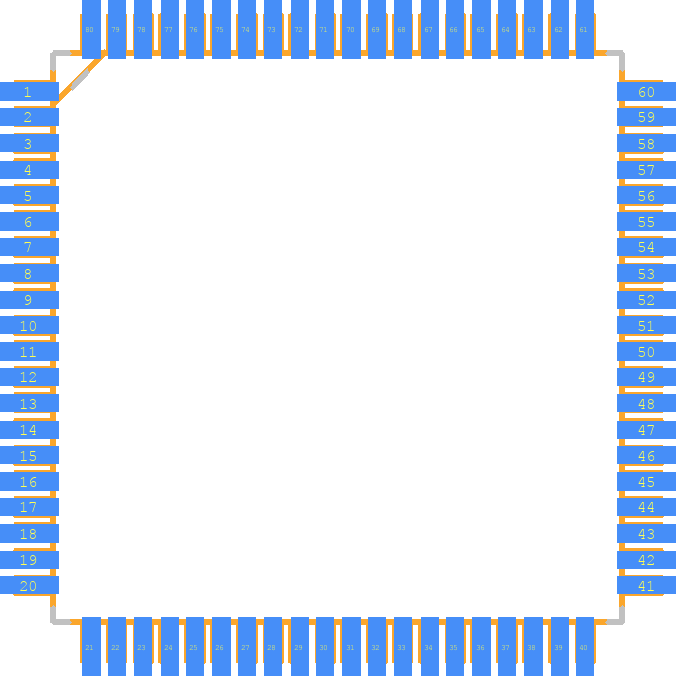

PCB Footprints
- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for AD9883AKSTZ-110
- Part Number AD9883AKSTZ-110
- Manufacturer Analog Devices
- Pin Count 80
- Part Category Integrated Circuit
- Package Category Other
- Footprint Name Other - QFP65P1600X1600X160-80N
- Released Date Jan 10, 2017
- Last Modified Date Nov 15, 2024 1:35 PM UTC
- Pinout / Pin List Click Here (Member Only)
AD9883AKSTZ-110 Details
-
Manufacturer Part Number:
AD9883AKSTZ-110
-
Brand Name:
Analog Devices Inc
-
Pbfree Code:
No
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Obsolete
-
Part Package Code:
QFP
-
Package Description:
PLASTIC, MS-026BEC, LQFP-80
-
Pin Count:
80
-
Manufacturer Package Code:
ST-80-2
-
Country Of Origin:
Philippines
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.01
AD9883AKSTZ-110 Frequently Asked Questions (FAQs)
-
A good PCB layout is crucial for the AD9883AKSTZ-110. Analog Devices recommends a 4-layer PCB with a solid ground plane, and the use of vias to connect the top and bottom layers. The datasheet provides a recommended PCB layout, but it's essential to follow good high-frequency design practices, such as minimizing trace lengths and using 50-ohm transmission lines.
-
To optimize the AD9883AKSTZ-110's performance, you should consider factors such as the input signal frequency, amplitude, and impedance. You may need to adjust the gain, bandwidth, and output impedance to match your specific application. Additionally, you can use the device's built-in calibration features to optimize its performance. Consult the datasheet and application notes for more information.
-
The AD9883AKSTZ-110 can support clock frequencies up to 1.2 GHz. However, the maximum clock frequency may vary depending on the specific application and the quality of the clock signal. It's essential to ensure that the clock signal meets the device's requirements and that the PCB layout is optimized for high-frequency operation.
-
To troubleshoot issues with the AD9883AKSTZ-110, start by checking the power supply, clock signal, and input signal. Verify that the device is properly configured and that the PCB layout is correct. Use oscilloscopes and logic analyzers to debug the device's operation. Consult the datasheet, application notes, and Analog Devices' support resources for more information.
-
The AD9883AKSTZ-110 is a general-purpose ADC, and its compatibility with a specific FPGA or ASIC depends on the device's interface and the FPGA/ASIC's requirements. Check the datasheet and the FPGA/ASIC's documentation to ensure that the interface and timing requirements are compatible. You may need to use a FIFO or other interface logic to connect the AD9883AKSTZ-110 to your FPGA/ASIC.
Trust Checks
System Verified
AD9883AKSTZ-110 Overview
Use the download button to access the AD9883AKSTZ-110 schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like AD988,
or try a keyword search, such as Other Consumer ICs
