AD9888KSZ-170 - Analog Devices

Description: Display Interface IC 170 MSPS Analog Flat Panel IF

Download AD9888KSZ-170 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
AD9888KSZ-170 - Analog Devices - PCB symbol
click to zoom
PCB Footprints

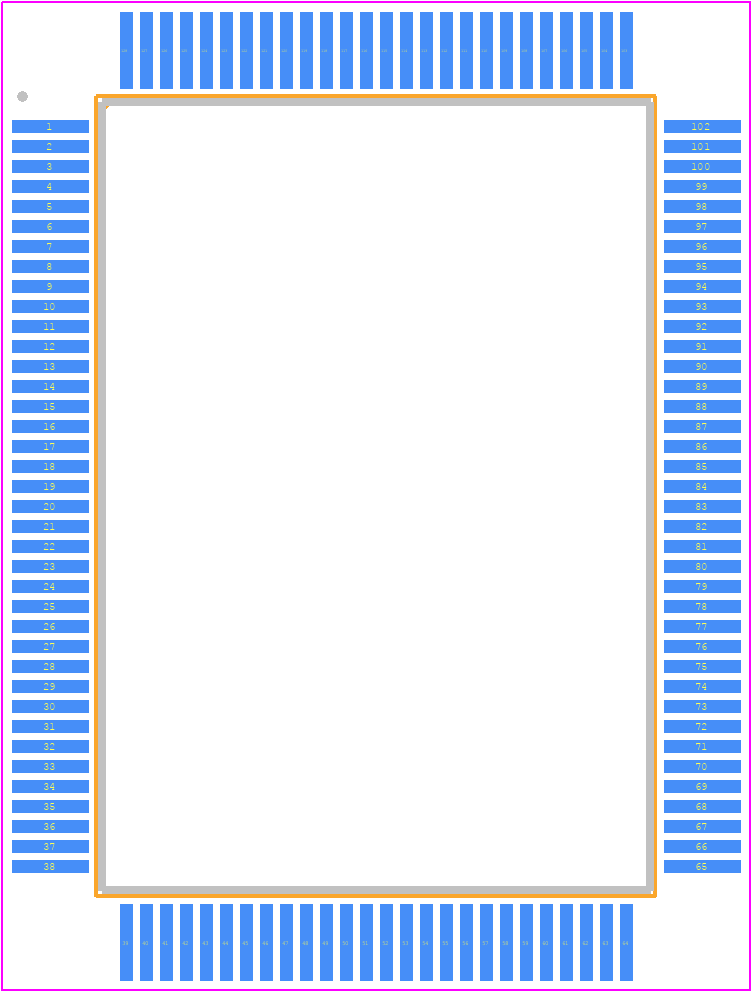

AD9888KSZ-170 - Analog Devices PCB footprint - Quad Flat Packages - Quad Flat Packages - S-128-1
click to zoom
3D Models
AD9888KSZ-170 - Analog Devices - 3D model - Quad Flat Packages - S-128-1
click to zoom

AD9888KSZ-170 Details

  • Manufacturer Part Number:

    AD9888KSZ-170

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Part Package Code:

    QFP

  • Package Description:

    PLASTIC, MQFP-128

  • Pin Count:

    128

  • Manufacturer Package Code:

    S-128-1

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    3

  • Consumer IC Type:

    CONSUMER CIRCUIT

  • JESD-30 Code:

    R-PQFP-G128

  • JESD-609 Code:

    e3

  • Length:

    20 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    128

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    FQFP

  • Package Equivalence Code:

    QFP128,.67X.93,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    FLATPACK, FINE PITCH

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    3.4 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    14 mm

AD9888KSZ-170 Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the analog and digital signal traces separate and avoid crossing them over each other. Use a common mode filter or a ferrite bead to filter out high-frequency noise on the power lines.
  • The AD9888KSZ-170 requires a stable clock source. Use a high-quality clock source with low jitter and ensure that the clock frequency is within the recommended range. For synchronization, use the SYNC_IN pin to synchronize the AD9888KSZ-170 with other devices in the system. Refer to the datasheet for specific timing requirements and synchronization protocols.
  • Use a combination of ceramic and electrolytic capacitors for power supply decoupling. Place a 10uF ceramic capacitor close to the power pin and a 10uF electrolytic capacitor further away. Add a ferrite bead or a common mode filter to filter out high-frequency noise on the power lines. Ensure that the power supply voltage is within the recommended range.
  • Use a logic analyzer or an oscilloscope to capture and analyze the digital signals. Check the clock and data signals for any errors or corruption. Verify that the power supply voltage and clock frequency are within the recommended range. Check the datasheet for specific troubleshooting guidelines and debugging techniques.
  • The AD9888KSZ-170 has a maximum junction temperature of 150°C. Ensure good airflow around the device and use a heat sink if necessary. Avoid overheating the device by ensuring that the power consumption is within the recommended range. Use thermal interface materials to improve heat transfer between the device and the heat sink.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD9888KSZ-170 Overview

Use the download button to access the AD9888KSZ-170 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD988, or try a keyword search, such as Other Consumer ICs

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
