Symbol
PCB Footprints
- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for AD9889BBSTZ-80
- Part Number AD9889BBSTZ-80
- Manufacturer Analog Devices
- Pin Count 80
- Part Category Integrated Circuit
- Package Category Other

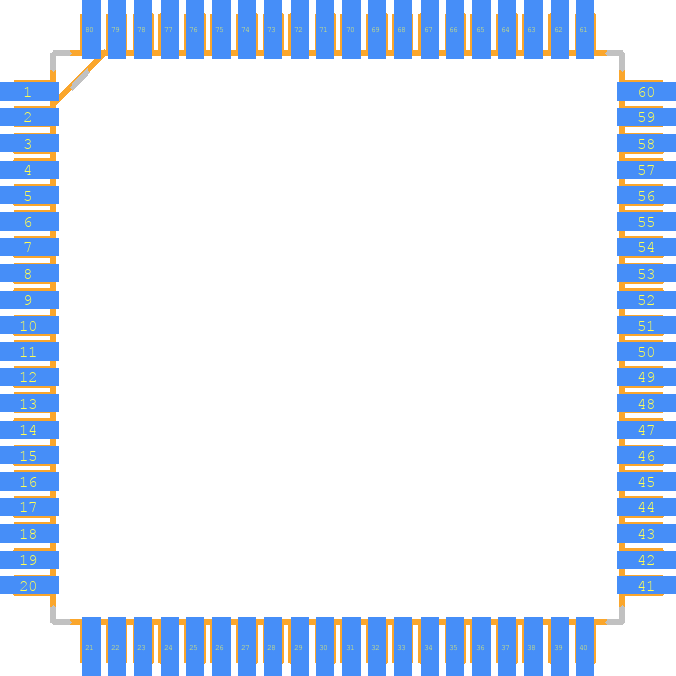

- Footprint Name Other - QFP65P1600X1600X160-80N
- Released Date Jan 10, 2017
- Last Modified Date Nov 15, 2024 1:35 PM UTC
- Pinout / Pin List Click Here (Member Only)
AD9889BBSTZ-80 Details
-
Manufacturer Part Number:
AD9889BBSTZ-80
-
Brand Name:
Analog Devices Inc
-
Pbfree Code:
No
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Not Recommended
-
Part Package Code:
QFP
-
Package Description:
LQFP-80
-
Pin Count:
80
-
Manufacturer Package Code:
ST-80-2
-
Country Of Origin:
Mainland China
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.01
AD9889BBSTZ-80 Frequently Asked Questions (FAQs)
-
A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the analog and digital signal traces separate and avoid crossing them over each other. Use a common mode filter or a ferrite bead to filter out high-frequency noise on the power lines.
-
The AD9889BBSTZ-80 requires a single 3.3V power supply. Ensure that the power supply is clean and regulated. Power sequencing is not critical, but it's recommended to power up the analog supply (VCCA) before the digital supply (VCCD) to prevent any potential latch-up conditions.
-
Use a low-jitter clock source (<100 ps) and ensure that the clock signal is properly terminated. Use a clock buffer or a clock distribution network to minimize clock skew and jitter. The AD9889BBSTZ-80 can also be clocked from an external clock source or a crystal oscillator.
-
Optimize the AD9889BBSTZ-80's performance by adjusting the gain, offset, and bandwidth settings. Use the device's built-in calibration features to optimize the performance. Adjust the gain and offset settings to optimize the signal-to-noise ratio (SNR) and dynamic range. Adjust the bandwidth settings to optimize the frequency response.
-
The AD9889BBSTZ-80 has a maximum junction temperature of 150°C. Ensure good airflow around the device, and use a heat sink or thermal pad to dissipate heat. Avoid overheating the device, and ensure that the operating temperature is within the specified range (-40°C to 85°C).
Trust Checks
System Verified
AD9889BBSTZ-80 Overview
Use the download button to access the AD9889BBSTZ-80 schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like AD988,
or try a keyword search, such as Other Consumer ICs
About Analog Devices
Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries.
Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
