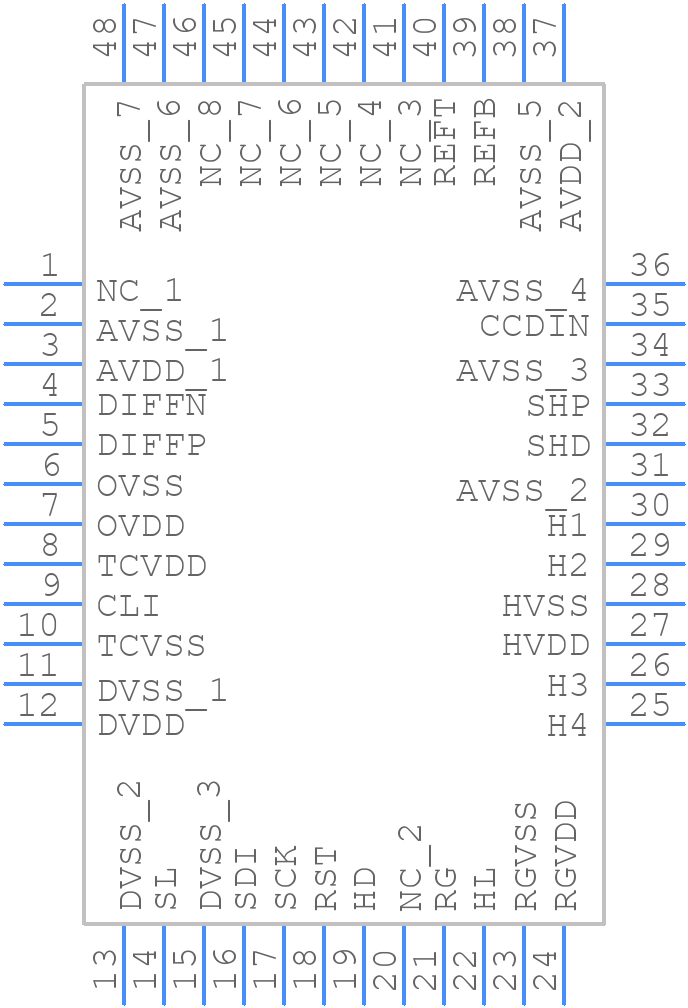

AD9940BSTZ - Analog Devices

AD9940BSTZ Frequently Asked Questions (FAQs)

• What is the recommended power-up sequence for the AD9940BSTZ?
  The recommended power-up sequence is to apply power to the analog supply (VCCA) first, followed by the digital supply (VCCD), and then the clock signal. This ensures proper initialization of the device.
• How do I optimize the performance of the AD9940BSTZ in terms of noise reduction?
  To optimize noise reduction, ensure that the analog and digital grounds are separated and connected at a single point, use a low-noise power supply, and minimize the length of the clock signal trace. Additionally, use a clock signal with a low jitter and a stable frequency.
• What is the maximum clock frequency that the AD9940BSTZ can support?
  The AD9940BSTZ can support clock frequencies up to 65 MHz. However, the maximum clock frequency may vary depending on the specific application and the quality of the clock signal.
• How do I configure the AD9940BSTZ for different video formats?
  The AD9940BSTZ can be configured for different video formats by programming the device's registers through the I2C interface. The specific register settings will depend on the video format and the application requirements.
• What is the latency of the AD9940BSTZ, and how does it affect the system design?
  The latency of the AD9940BSTZ is approximately 2-3 clock cycles. This latency should be taken into account when designing the system, especially when synchronizing the video data with other signals or when using the device in a pipeline architecture.
