- Part Number ADA2200ARUZ
- Manufacturer Analog Devices
- Pin Count 16
- Part Category Integrated Circuit
- Package Category Small Outline Packages
- Footprint Name Small Outline Packages - ADA2200ARUZ
- Released Date Sep 25, 2019
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
ADA2200ARUZ Details
-
Manufacturer Part Number:
ADA2200ARUZ
-
Brand Name:
Analog Devices Inc
-
Pbfree Code:
No
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Obsolete
-
Package Description:
ROHS COMPLIANT, MO-153AB, TSSOP-16
-
Pin Count:
16
-
Manufacturer Package Code:
RU-16
-
ECCN Code:
EAR99
-
HTS Code:
8542.33.00.01
-
Manufacturer:
Analog Devices Inc
ADA2200ARUZ Frequently Asked Questions (FAQs)
-
The recommended PCB layout for the ADA2200ARUZ involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated ground plane is recommended. Refer to the Analog Devices application note AN-1367 for more details.
-
To optimize the ADA2200ARUZ for low noise performance, use a low-noise power supply, keep the input and output traces away from each other, use a low-ESR decoupling capacitor, and minimize the distance between the device and the decoupling capacitor. Additionally, use a low-noise reference voltage and ensure that the device is operated within its recommended operating conditions.
-
The maximum operating temperature range for the ADA2200ARUZ is -40°C to +125°C. However, the device's performance may degrade at temperatures above 85°C. It is recommended to operate the device within the recommended operating temperature range for optimal performance.
-
Yes, the ADA2200ARUZ is suitable for high-reliability applications. It is manufactured using a high-reliability process and is qualified to automotive and industrial standards. However, it is recommended to follow proper design and manufacturing practices to ensure the device's reliability in the specific application.
-
To troubleshoot issues with the ADA2200ARUZ, start by verifying the device's power supply and input/output connections. Check for any signs of physical damage or contamination. Use a oscilloscope to verify the input and output waveforms. Consult the datasheet and application notes for troubleshooting guidelines and common pitfalls to avoid.
Trust Checks
Community Provided
System Verified
Community Approved
ADA2200ARUZ Overview

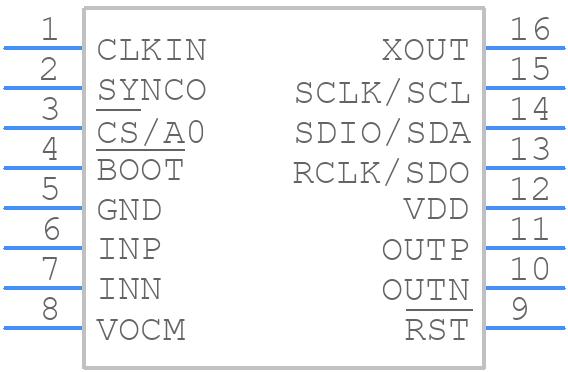

Use the download button to access the ADA2200ARUZ schematic symbol, PCB footprint, and 3D model.
