- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for ADA4254ACPZ
- Part Number ADA4254ACPZ
- Manufacturer Analog Devices
- Pin Count 29
- Part Category Integrated Circuit
- Package Category Quad Flat No-Lead
- Footprint Name Quad Flat No-Lead - (CP-28-10)
- Released Date Nov 29, 2019
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
ADA4254ACPZ Details
-
Manufacturer Part Number:
ADA4254ACPZ
-
Brand Name:
Analog Devices Inc
-
Pbfree Code:
No
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Package Description:
LFCSP-28
-
Pin Count:
28
-
Manufacturer Package Code:
CP-28-10
-
ECCN Code:
EAR99
-
HTS Code:
8542.33.00.01
-
Date Of Intro:
2019-11-08
-
Manufacturer:
Analog Devices Inc
ADA4254ACPZ Frequently Asked Questions (FAQs)
-
A good PCB layout for the ADA4254ACPZ involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources. Additionally, using a 4-layer PCB with a dedicated power plane and a dedicated ground plane can help to reduce noise and improve performance.
-
To optimize the ADA4254ACPZ for low noise and high accuracy, it's essential to follow proper PCB layout guidelines, use a low-noise power supply, and ensure that the input signals are properly filtered and conditioned. Additionally, selecting the right gain and bandwidth settings for the specific application can help to minimize noise and maximize accuracy.
-
When selecting external components for the ADA4254ACPZ, it's essential to consider factors such as tolerance, temperature coefficient, and parasitic inductance. For example, using 1% or 0.1% resistors can help to minimize gain errors, while using NP0 or C0G capacitors can help to minimize temperature-related errors.
-
To troubleshoot common issues with the ADA4254ACPZ, start by checking the power supply voltage and ensuring that it's within the recommended range. Next, verify that the input signals are properly filtered and conditioned, and that the gain and bandwidth settings are correct. If oscillations or instability persist, try adding decoupling capacitors or modifying the PCB layout to reduce noise and improve stability.
-
The ADA4254ACPZ and ADA4255 are both high-performance, low-noise amplifiers, but they have some key differences. The ADA4254ACPZ has a higher gain bandwidth product and a lower noise floor, making it suitable for high-frequency applications. The ADA4255, on the other hand, has a lower power consumption and a wider supply voltage range, making it suitable for battery-powered applications.
Trust Checks
Community Provided
System Verified
Community Approved
ADA4254ACPZ Overview

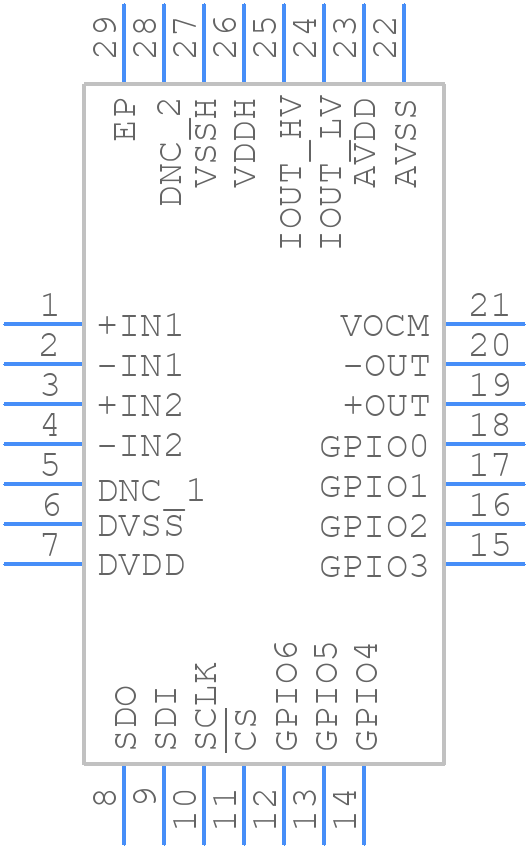

Use the download button to access the ADA4254ACPZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADA42,
or try a keyword search, such as Instrumentation Amplifiers
About Analog Devices
Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries.
Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
