ADA4350ARUZ - Analog Devices

Description: ADA4350ARUZ, Analogue Front End IC, 1-channel SPI, 28-Pin TSSOP

Download ADA4350ARUZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

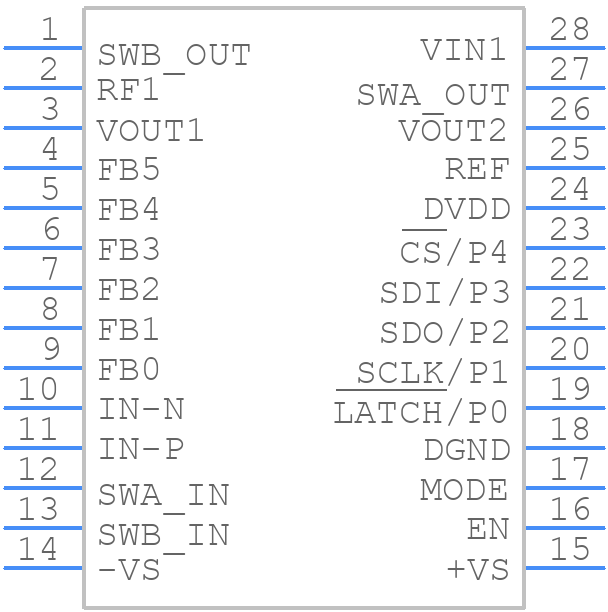

ADA4350ARUZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADA4350ARUZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - -28-Lead Thin Shrink Small Outline Package [TSSOP], (RU-28)-
click to zoom
3D Models
ADA4350ARUZ - Analog Devices - 3D model - Small Outline Packages - -28-Lead Thin Shrink Small Outline Package [TSSOP], (RU-28)-
click to zoom

ADA4350ARUZ Details

  • Manufacturer Part Number:

    ADA4350ARUZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    TSSOP-28

  • Pin Count:

    28

  • Manufacturer Package Code:

    RU-28

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    5 V

  • Analog Input Voltage-Min:

    -5 V

  • Converter Type:

    ADC, PROPRIETARY METHOD

  • JESD-30 Code:

    R-PDSO-G28

  • JESD-609 Code:

    e3

  • Length:

    9.7 mm

  • Moisture Sensitivity Level:

    1

  • Negative Supply Voltage-Nom:

    -5 V

  • Number of Analog In Channels:

    1

  • Number of Bits:

    24

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY

  • Output Format:

    SERIAL, PARALLEL, WORD

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    4.4 mm

ADA4350ARUZ Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADA4350ARUZ involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To optimize the ADA4350ARUZ for low noise and high accuracy, ensure that the input signals are properly filtered and buffered, use a low-noise power supply, and minimize the distance between the ADA4350ARUZ and the analog signal sources. Additionally, use a high-quality clock source and ensure that the device is operated within its recommended operating conditions.
  • The ADA4350ARUZ can support clock frequencies up to 100 MHz, but the maximum clock frequency may vary depending on the specific application and the quality of the clock source. It's recommended to consult the datasheet and application notes for more information.
  • Yes, the ADA4350ARUZ can be used in a multi-channel application, but it requires careful consideration of the channel-to-channel isolation, crosstalk, and noise coupling. It's recommended to use a separate ADA4350ARUZ device for each channel or to use a single device with a multiplexer or analog switch to select the input channels.
  • To troubleshoot common issues with the ADA4350ARUZ, start by checking the power supply voltage, clock frequency, and input signal quality. Verify that the device is operated within its recommended operating conditions and that the input signals are properly filtered and buffered. Use an oscilloscope to visualize the input and output signals and check for any signs of noise, distortion, or clipping.
