ADA4432-1BCPZ-R2 - Analog Devices

Description: Single-Ended SD Video Filter Amplifier with Output Short-to-Battery Protection

Download ADA4432-1BCPZ-R2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

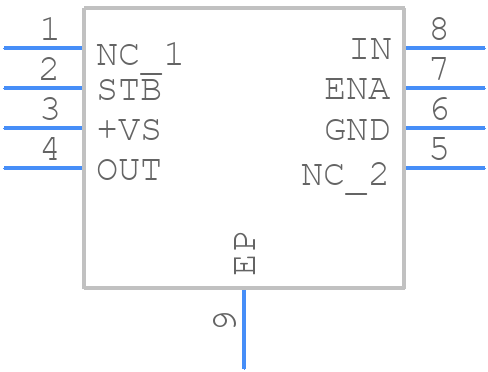

ADA4432-1BCPZ-R2 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADA4432-1BCPZ-R2 - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - (CP-8-21).
click to zoom
3D Models
ADA4432-1BCPZ-R2 - Analog Devices - 3D model - Small Outline No-lead - (CP-8-21).
click to zoom

ADA4432-1BCPZ-R2 Details

  • Manufacturer Part Number:

    ADA4432-1BCPZ-R2

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SON

  • Pin Count:

    8

  • Manufacturer Package Code:

    CP-8-21

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Consumer IC Type:

    CONSUMER CIRCUIT

  • JESD-30 Code:

    S-PDSO-N8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC10,.12,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.85 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    2.6 V

  • Surface Mount:

    YES

  • Technology:

    DMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

ADA4432-1BCPZ-R2 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADA4432-1BCPZ-R2 involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the input traces. Additionally, it's recommended to place the device close to the analog signal sources and to use a low-ESR capacitor for power supply decoupling.
  • To ensure proper power and decoupling, use a low-ESR capacitor (e.g., 10uF) between the VDD and GND pins, and a smaller capacitor (e.g., 100nF) between the AVDD and AGND pins. Also, make sure the power supply is clean and well-regulated, and that the device is operated within the recommended voltage range (2.7V to 5.5V).
  • The ADA4432-1BCPZ-R2 can handle input signal amplitudes up to 3.5Vpp differential, but it's recommended to keep the input signal amplitude below 2Vpp to ensure optimal performance and to prevent clipping.
  • To optimize noise performance, set the gain to the minimum required value, use a low-pass filter at the input, and ensure that the input signal is properly terminated. Additionally, use a low-noise power supply and minimize digital noise coupling into the analog circuitry.
  • The recommended clock frequency range for the ADA4432-1BCPZ-R2 is 10MHz to 50MHz, but it can operate up to 65MHz. However, the clock frequency should be chosen based on the specific application requirements and the desired data rate.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADA4432-1BCPZ-R2 Overview

Use the download button to access the ADA4432-1BCPZ-R2 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADA44, or try a keyword search, such as Other Consumer ICs

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
