ADA4433-1BCPZ-R2 - Analog Devices

Description: ideo Amp 1 Reconstruction Filter 8-LFCSP-WD (3x3)

Download ADA4433-1BCPZ-R2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

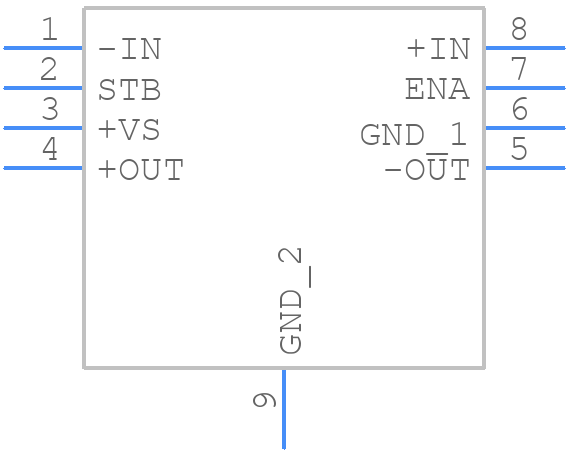

ADA4433-1BCPZ-R2 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADA4433-1BCPZ-R2 - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - CP-8-21
click to zoom
3D Models
ADA4433-1BCPZ-R2 - Analog Devices - 3D model - Small Outline No-lead - CP-8-21
click to zoom

ADA4433-1BCPZ-R2 Details

  • Manufacturer Part Number:

    ADA4433-1BCPZ-R2

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SON

  • Package Description:

    LFCSP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    CP-8-21

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Consumer IC Type:

    CONSUMER CIRCUIT

  • JESD-30 Code:

    S-PDSO-N8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC8,.12,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.85 mm

  • Supply Current-Max:

    18 mA

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    2.6 V

  • Surface Mount:

    YES

  • Technology:

    DMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

ADA4433-1BCPZ-R2 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADA4433-1BCPZ-R2 involves keeping the input and output traces short and symmetrical, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated ground plane is recommended.
  • To ensure proper biasing, connect the VCC pin to a stable 3.3V or 5V power supply, and decouple it with a 10uF capacitor to ground. The VEE pin should be connected to a quiet ground or a local ground plane. The input common-mode voltage should be within the recommended range of 1.5V to 3.5V.
  • The ADA4433-1BCPZ-R2 can handle input signal amplitudes up to 10Vpp differential, but it's recommended to limit the input amplitude to 5Vpp differential to ensure optimal performance and minimize distortion.
  • To filter out noise and interference, add a low-pass filter with a cutoff frequency of around 100kHz to 1MHz at the output of the ADA4433-1BCPZ-R2. A simple RC filter or an active filter using an op-amp can be used for this purpose.
  • The recommended operating temperature range for the ADA4433-1BCPZ-R2 is -40°C to 125°C. However, the device can operate up to 150°C with reduced performance and reliability.
