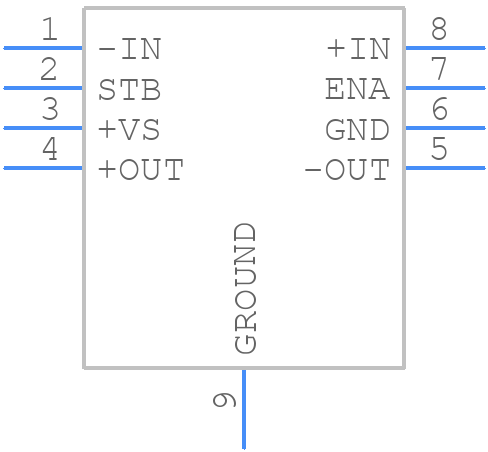

Symbol
ADA4433-1BCPZ-R7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADA4433-1BCPZ-R7 - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - CP-8-21_2026-1
click to zoom
3D Models
ADA4433-1BCPZ-R7 - Analog Devices - 3D model - Small Outline No-lead - CP-8-21_2026-1
click to zoom

ADA4433-1BCPZ-R7 Details

  • Manufacturer Part Number:

    ADA4433-1BCPZ-R7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SON

  • Package Description:

    LFCSP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    CP-8-21

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Consumer IC Type:

    CONSUMER CIRCUIT

  • JESD-30 Code:

    S-PDSO-N8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC8,.12,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.85 mm

  • Supply Current-Max:

    18 mA

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    2.6 V

  • Surface Mount:

    YES

  • Technology:

    DMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

ADA4433-1BCPZ-R7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADA4433-1BCPZ-R7 involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • The ADA4433-1BCPZ-R7 requires a single 3.3V power supply. It's recommended to use a low-dropout linear regulator (LDO) to power the device. The power sequencing requirement is to power up the analog supply (VDDA) before the digital supply (VDD).
  • The recommended clock frequency for the ADA4433-1BCPZ-R7 is between 10 MHz to 50 MHz. The clock signal should have a low jitter (less than 100 ps) and a stable frequency to ensure optimal performance.
  • To optimize the ADA4433-1BCPZ-R7's performance, it's recommended to adjust the gain settings, filter cutoff frequencies, and output stage configuration based on the specific application requirements. Additionally, optimizing the PCB layout, power supply, and clock signal quality can also improve performance.
  • The ADA4433-1BCPZ-R7 has a maximum junction temperature of 150°C. To ensure reliable operation, it's recommended to keep the device temperature below 125°C. This can be achieved by using a heat sink, improving airflow, and reducing power consumption.
