ADA4433-1WBCPZ-R7 - Analog Devices

Description: SD Video Filter Amplifiers with Output Short-to-Battery Protection, 18 V, −40°C to +125°C

Download ADA4433-1WBCPZ-R7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

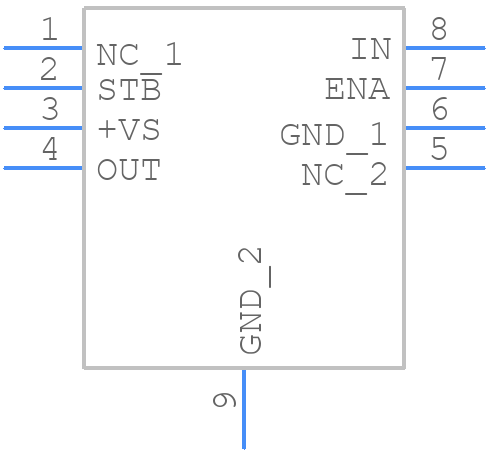

ADA4433-1WBCPZ-R7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADA4433-1WBCPZ-R7 - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - 8-Lead Lead Frame Chip Scale
click to zoom
3D Models
ADA4433-1WBCPZ-R7 - Analog Devices - 3D model - Small Outline No-lead - 8-Lead Lead Frame Chip Scale
click to zoom

ADA4433-1WBCPZ-R7 Details

  • Manufacturer Part Number:

    ADA4433-1WBCPZ-R7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SON

  • Package Description:

    LFCSP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    CP-8-21

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Consumer IC Type:

    CONSUMER CIRCUIT

  • JESD-30 Code:

    S-PDSO-N8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC8,.12,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    0.85 mm

  • Supply Current-Max:

    19 mA

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    2.6 V

  • Surface Mount:

    YES

  • Technology:

    DMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

ADA4433-1WBCPZ-R7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADA4433-1WBCPZ-R7 involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated ground plane is recommended.
  • To ensure proper biasing, connect the VCC pin to a stable voltage source between 2.7V and 5.5V, and the GND pin to a solid ground plane. The VREF pin should be connected to a stable voltage reference, and the EN pin should be tied to VCC or a logic signal for enable/disable functionality.
  • The recommended input signal range for the ADA4433-1WBCPZ-R7 is between 0V and VREF, where VREF is the voltage reference connected to the VREF pin. The input signal should not exceed the supply voltage (VCC) or go below ground (GND).
  • To filter out noise and interference, add a low-pass filter (LPF) or a band-pass filter (BPF) at the output of the ADA4433-1WBCPZ-R7. The filter design should be based on the specific frequency requirements of the application.
  • The ADA4433-1WBCPZ-R7 has a thermal pad on the bottom of the package, which should be connected to a solid ground plane or a thermal heat sink to dissipate heat. A thermal interface material (TIM) can be used to improve heat transfer between the device and the heat sink.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADA4433-1WBCPZ-R7 Overview

Use the download button to access the ADA4433-1WBCPZ-R7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADA44, or try a keyword search, such as Other Consumer ICs

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
