ADA4932-2YCPZ-R2 - Analog Devices

Description: ADA4932-2YCPZ-R2, Differential Line Driver 5, 9V 2-channel 24-Pin LFCSP EP

Download ADA4932-2YCPZ-R2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

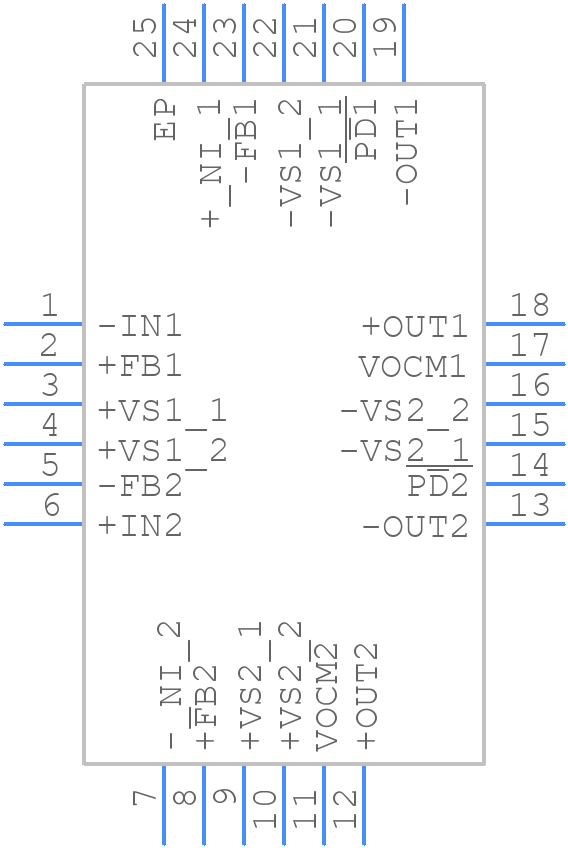

ADA4932-2YCPZ-R2 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADA4932-2YCPZ-R2 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - (CP-24-14)
click to zoom
3D Models
ADA4932-2YCPZ-R2 - Analog Devices - 3D model - Quad Flat No-Lead - (CP-24-14)
click to zoom

ADA4932-2YCPZ-R2 Details

  • Manufacturer Part Number:

    ADA4932-2YCPZ-R2

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Package Description:

    LFCSP-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    CP-24-14

  • Country Of Origin:

    South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Differential Output:

    YES

  • Driver Number of Bits:

    2

  • Input Characteristics:

    DIFFERENTIAL

  • Interface IC Type:

    LINE DRIVER

  • Interface Standard:

    GENERAL PURPOSE

  • JESD-30 Code:

    S-XQCC-N24

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    2

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Out Swing-Min:

    3.2 V

  • Output Characteristics:

    DIFFERENTIAL

  • Output Polarity:

    COMPLEMENTARY

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC24,.16SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max:

    5 mA

  • Supply Voltage-Max:

    11 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    4 mm

ADA4932-2YCPZ-R2 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADA4932-2YCPZ-R2 involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To optimize the ADA4932-2YCPZ-R2's performance for high-frequency applications, use a low-ESR capacitor for decoupling, minimize the length of the input traces, and use a high-frequency-compatible PCB material. Additionally, consider using a differential amplifier configuration to reduce noise and improve common-mode rejection.
  • The ADA4932-2YCPZ-R2 is rated for operation from -40°C to 125°C, but it's recommended to operate it within a temperature range of 0°C to 85°C for optimal performance and reliability.
  • Yes, the ADA4932-2YCPZ-R2 can be used in a single-supply configuration, but it's recommended to use a voltage reference to set the output common-mode voltage. Additionally, the input common-mode voltage range should be within the specified range to ensure optimal performance.
  • To troubleshoot CMRR issues with the ADA4932-2YCPZ-R2, check the input impedance matching, ensure the input signals are differential, and verify that the device is operated within the specified common-mode voltage range. Additionally, check for any noise or interference on the power supply lines and ensure proper decoupling.
