ADA4937-1YCPZ-RL - Analog Devices

Description: Ultralow Distortion Differential ADC Driver (Single)

Download ADA4937-1YCPZ-RL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

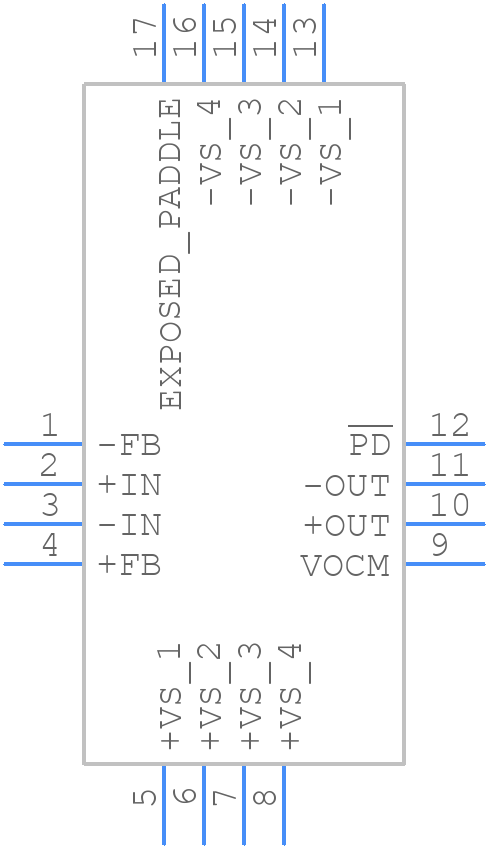

ADA4937-1YCPZ-RL - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADA4937-1YCPZ-RL - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - CP-16-21
click to zoom
3D Models
ADA4937-1YCPZ-RL - Analog Devices - 3D model - Quad Flat No-Lead - CP-16-21
click to zoom

ADA4937-1YCPZ-RL Details

  • Manufacturer Part Number:

    ADA4937-1YCPZ-RL

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Package Description:

    3 X 3 MM, ROHS COMPLIANT, MO-220VEED-2, LFCSP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    CP-16-21

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Differential Output:

    YES

  • Driver Number of Bits:

    1

  • Input Characteristics:

    DIFFERENTIAL

  • Interface IC Type:

    LINE DRIVER

  • Interface Standard:

    GENERAL PURPOSE

  • JESD-30 Code:

    S-XQCC-N16

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max:

    5.25 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    3 mm

ADA4937-1YCPZ-RL Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADA4937-1YCPZ-RL involves keeping the input and output traces short and away from noise sources, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated analog ground plane is recommended.
  • The ADA4937-1YCPZ-RL requires a dual supply voltage of ±2.5V to ±5.5V. Ensure that the voltage supplies are well-regulated and decoupled, and that the device is biased within the recommended operating range. A voltage reference such as the ADR4525 can be used to generate a stable reference voltage.
  • The ADA4937-1YCPZ-RL can handle input voltages up to ±10V, but the device is only specified for operation up to ±5V. Exceeding the maximum input voltage can result in reduced performance or damage to the device.
  • The ADA4937-1YCPZ-RL has a built-in antialiasing filter, but additional filtering may be required depending on the application. A passive RC filter or an active filter such as the ADP3330 can be used to filter out noise and aliasing in the output signal.
  • The ADA4937-1YCPZ-RL can operate with clock frequencies up to 100 MHz, but the recommended clock frequency is 50 MHz to 80 MHz for optimal performance. A clock frequency of 64 MHz is a good starting point for most applications.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADA4937-1YCPZ-RL Overview

Use the download button to access the ADA4937-1YCPZ-RL schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADA49, or try a keyword search, such as Line Driver or Receivers
