ADAQ4001BBCZ - Analog Devices

Description: 16-Bit, 2 MSPS, μModule Data Acquisition Solution

Download ADAQ4001BBCZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

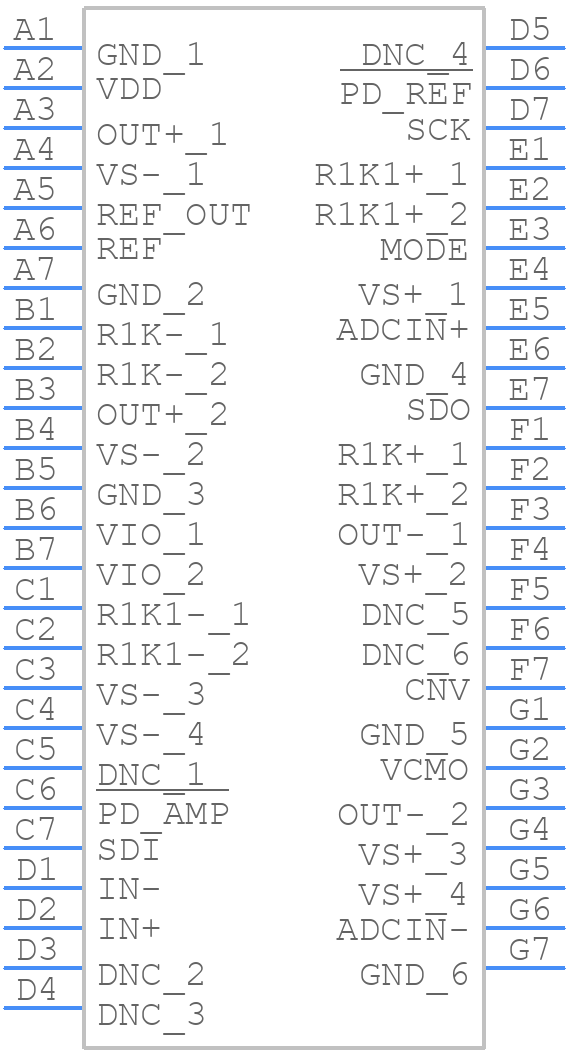

ADAQ4001BBCZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADAQ4001BBCZ - Analog Devices PCB footprint - BGA - BGA - BC-49-5
click to zoom
3D Models
ADAQ4001BBCZ - Analog Devices - 3D model - BGA - BC-49-5
click to zoom

ADAQ4001BBCZ Details

  • Manufacturer Part Number:

    ADAQ4001BBCZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CSPBGA-49

  • Pin Count:

    49

  • Manufacturer Package Code:

    BC-49-5

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Analog Input Voltage-Max:

    12.705 V

  • Analog Input Voltage-Min:

    -5.28 V

  • Conversion Time-Max:

    0.32 µs

  • Converter Type:

    DATA ACQUISITION DEVICE

  • JESD-30 Code:

    S-PBGA-B49

  • Length:

    7 mm

  • Linearity Error-Max (EL):

    0.00119%

  • Moisture Sensitivity Level:

    3

  • Number of Analog In Channels:

    1

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    49

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    2S COMPLEMENT HEXADECIMAL

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    FBGA

  • Package Equivalence Code:

    BGA49,7X7,20

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Sample Rate:

    2 MHz

  • Seated Height-Max:

    2.432 mm

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7 mm

ADAQ4001BBCZ Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADAQ4001BBCZ involves keeping the analog and digital sections separate, using a solid ground plane, and minimizing noise coupling between the analog and digital signals. It's also recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To ensure the accuracy of the temperature measurement, it's essential to calibrate the device, use a high-accuracy voltage reference, and minimize thermal gradients on the PCB. Additionally, the device should be operated within its specified temperature range, and the temperature sensor should be placed close to the device being measured.
  • The maximum sampling rate of the ADAQ4001BBCZ is 1 MSPS (million samples per second) in parallel mode and 500 kSPS (thousand samples per second) in serial mode. However, the actual sampling rate may be limited by the system's clock frequency, the conversion mode, and the interface mode.
  • The ADAQ4001BBCZ has a built-in POR and BOR circuitry that resets the device during power-on and brown-out conditions. To handle these resets, the system should be designed to detect and respond to the reset signals, and the device should be configured to operate in a known state after reset.
  • The recommended power supply decoupling for the ADAQ4001BBCZ involves using a combination of ceramic and electrolytic capacitors to filter out noise and ripple. A 10 μF ceramic capacitor and a 10 μF electrolytic capacitor in parallel are recommended for the AVDD and DVDD power supplies.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADAQ4001BBCZ Overview

Use the download button to access the ADAQ4001BBCZ schematic symbol, PCB footprint, and 3D model.
